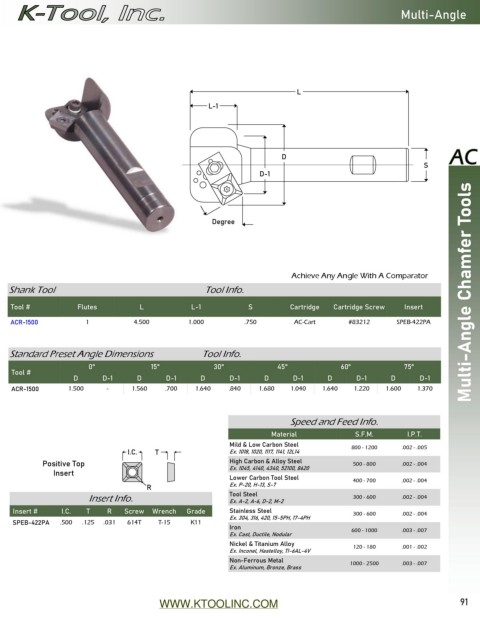

Page 91 - Catalog 15

Multi-Angle

L
L-1

D
S
D-1

Degree

Achieve Any Angle With A Comparator
Shank Tool Tool Info. Multi-Angle Chamfer Tools

Tool # Flutes L L-1 S Cartridge Cartridge Screw Insert

ACR-1500 1 4.500 1.000 .750 AC-Cart #83212 SPEB-422PA

Standard Preset Angle Dimensions Tool Info.
0° 15° 30° 45° 60° 75°
Tool #
D D-1 D D-1 D D-1 D D-1 D D-1 D D-1
ACR-1500 1.500 - 1.560 .700 1.640 .840 1.680 1.040 1.640 1.220 1.600 1.370

Speed and Feed Info.
Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .005
I.C. T Ex. 1018, 1020, 1117, 1141, 12L14
Positive Top High Carbon & Alloy Steel 500 - 800 .002 - .004
Insert Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel
R Ex. P-20, H-13, S-7 400 - 700 .002 - .004
Insert Info. Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
Insert # I.C. T R Screw Wrench Grade Stainless Steel 300 - 600 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-422PA .500 .125 .031 614T T-15 X33
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .007
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 91
