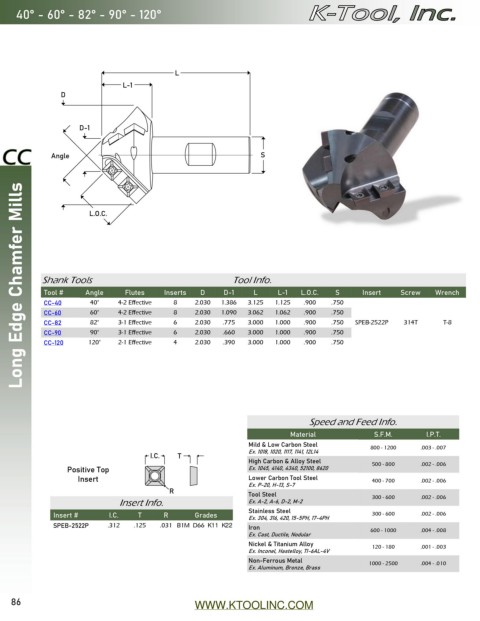

40° - 60° - 82° - 90° - 120°

L
L-1
D

D-1

Angle S

Long Edge Chamfer Mills

L.O.C.

Shank Tools Tool Info.

Tool # Angle Flutes Inserts D D-1 L L-1 L.O.C. S Insert Screw Wrench
CC-40 40° 4-2 Effective 8 2.030 1.386 3.125 1.125 .900 .750
CC-60 60° 4-2 Effective 8 2.030 1.090 3.062 1.062 .900 .750
CC-82 82° 3-1 Effective 6 2.030 .775 3.000 1.000 .900 .750 SPEB-2522P 314T T-8
CC-90 90° 3-1 Effective 6 2.030 .660 3.000 1.000 .900 .750
CC-120 120° 2-1 Effective 4 2.030 .390 3.000 1.000 .900 .750

Speed and Feed Info.

Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .003 - .007
Ex. 1018, 1020, 1117, 1141, 12L14
I.C. T High Carbon & Alloy Steel
Positive Top Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .006
Insert Lower Carbon Tool Steel 400 - 700 .002 - .006
R Ex. P-20, H-13, S-7
Tool Steel
Insert Info. Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .006
Stainless Steel
Insert # I.C. T R Grades Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .006
SPEB-2522P .312 .125 .031 B1M C55 X33 X40 Iron
Ex. Cast, Ductile, Nodular 600 - 1000 .004 - .008
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .004 - .010
Ex. Aluminum, Bronze, Brass
