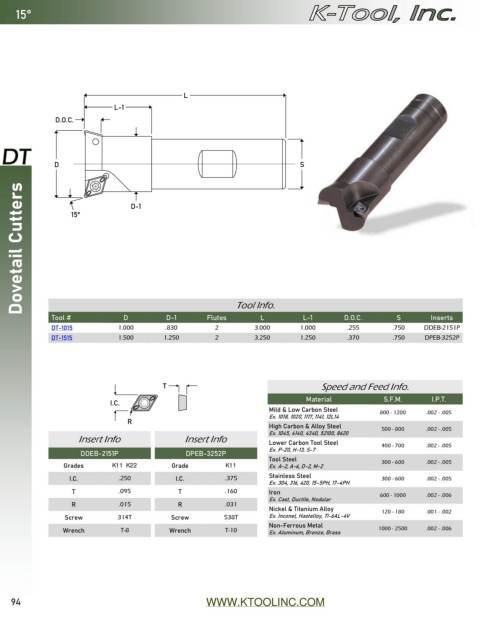

Page 94 - Catalog 15

15°

L
L-1
D.O.C.

D D-1 S

Dovetail Cutters 15°

L

Tool # D D-1 Flutes Tool Info. L-1 D.O.C. S Inserts
DT-1015 1.000 .830 2 3.000 1.000 .255 .750 DDEB-2151P
DT-1515 1.500 1.250 2 3.250 1.250 .370 .750 DPEB-3252P

T Speed and Feed Info.

I.C. Material S.F.M. I.P.T.
Mild & Low Carbon Steel
Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .005
R
High Carbon & Alloy Steel 500 - 800 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Insert Info Insert Info Lower Carbon Tool Steel
Ex. P-20, H-13, S-7 400 - 700 .002 - .005
DDEB-2151P DPEB-3252P
Tool Steel
Grades X33 X40 Grade X33 Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .005
I.C. .250 I.C. .375 Stainless Steel 300 - 600 .002 - .005
Ex. 304, 316, 420, 15-5PH, 17-4PH
T .095 T .160 Iron 600 - 1000 .002 - .006
Ex. Cast, Ductile, Nodular
R .015 R .031
Nickel & Titanium Alloy 120 - 180 .001 - .002
Screw 314T Screw 538T Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal
Wrench T-8 Wrench T-10 Ex. Aluminum, Bronze, Brass 1000 - 2500 .002 - .006

94 WWW.KTOOLINC.COM
