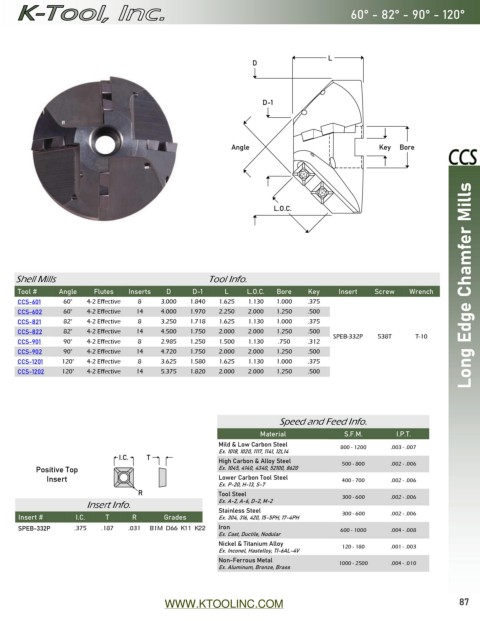

Page 87 - Catalog 15

60° - 82° - 90° - 120°

L
D

D-1

Angle Key Bore

L.O.C.

Shell Mills Tool Info.

Tool # Angle Flutes Inserts D D-1 L L.O.C. Bore Key Insert Screw Wrench Long Edge Chamfer Mills
CCS-601 60° 4-2 Effective 8 3.000 1.840 1.625 1.130 1.000 .375
CCS-602 60° 4-2 Effective 14 4.000 1.970 2.250 2.000 1.250 .500
CCS-821 82° 4-2 Effective 8 3.250 1.718 1.625 1.130 1.000 .375
CCS-822 82° 4-2 Effective 14 4.500 1.750 2.000 2.000 1.250 .500
SPEB-332P 538T T-10
CCS-901 90° 4-2 Effective 8 2.985 1.250 1.500 1.130 .750 .312
CCS-902 90° 4-2 Effective 14 4.720 1.750 2.000 2.000 1.250 .500
CCS-1201 120° 4-2 Effective 8 3.625 1.580 1.625 1.130 1.000 .375
CCS-1202 120° 4-2 Effective 14 5.375 1.820 2.000 2.000 1.250 .500

Speed and Feed Info.

Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .003 - .007
Ex. 1018, 1020, 1117, 1141, 12L14
I.C. T High Carbon & Alloy Steel
Positive Top Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .006
Insert Lower Carbon Tool Steel 400 - 700 .002 - .006
Ex. P-20, H-13, S-7
R Tool Steel 300 - 600 .002 - .006
Insert Info. Ex. A-2, A-6, D-2, M-2
Stainless Steel
Insert # I.C. T R Grades Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .006
SPEB-332P .375 .187 .031 B1M C55 X33 X40 Iron 600 - 1000 .004 - .008
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .004 - .010
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 87
