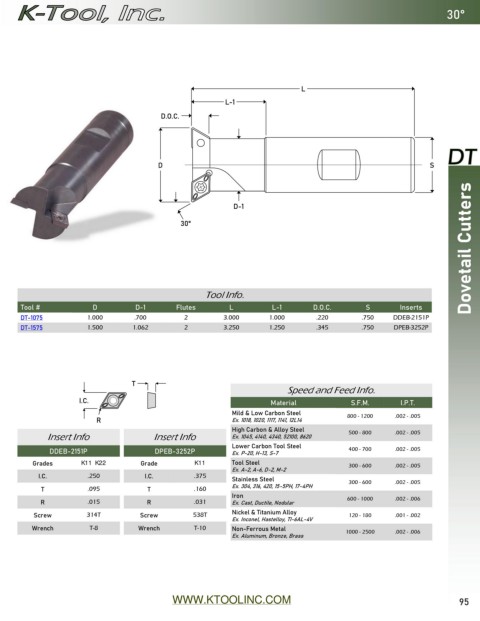

Page 95 - Catalog 15

30°

L

L-1
D.O.C.

D S

Dovetail Cutters

D-1

30°

Tool Info.

Tool # D D-1 Flutes L L-1 D.O.C. S Inserts
DT-1075 1.000 .700 2 3.000 1.000 .220 .750 DDEB-2151P
DT-1575 1.500 1.062 2 3.250 1.250 .345 .750 DPEB-3252P

T

Speed and Feed Info.
I.C. Material S.F.M. I.P.T.

Mild & Low Carbon Steel
R Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .005
High Carbon & Alloy Steel 500 - 800 .002 - .005
Insert Info Insert Info Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel
DDEB-2151P DPEB-3252P Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Grades X33 X40 Grade X33 Tool Steel 300 - 600 .002 - .005
Ex. A-2, A-6, D-2, M-2
I.C. .250 I.C. .375 Stainless Steel 300 - 600 .002 - .005
T .095 T .160 Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron
R .015 R .031 Ex. Cast, Ductile, Nodular 600 - 1000 .002 - .006
Screw 314T Screw 538T Nickel & Titanium Alloy 120 - 180 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
Wrench T-8 Wrench T-10 Non-Ferrous Metal 1000 - 2500 .002 - .006
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 95
