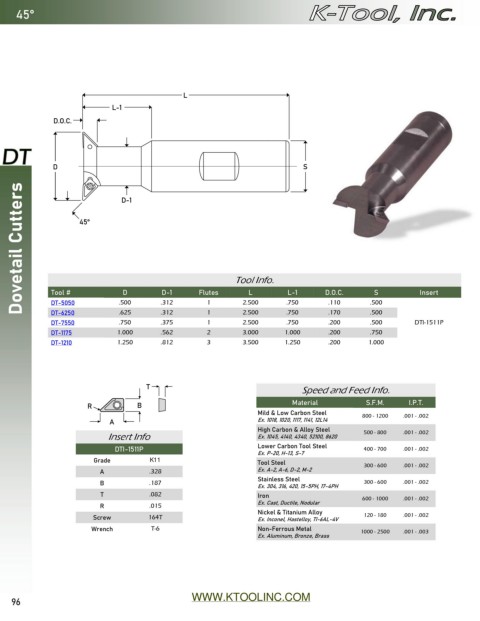

Page 96 - Catalog 15

45°

L
L-1
D.O.C.

D D-1 S

Dovetail Cutters 45°

L-1
D-1
D
L
S
Tool # .500 .312 Flutes Tool Info. .750 D.O.C. .500 Insert
DT-5050
2.500
.110
1
DT-6250
.375
.750
.200
.500
1
2.500
.750
DT-7550 .625 .312 1 2.500 .750 .170 .500 DTI-1511P
DT-1175 1.000 .562 2 3.000 1.000 .200 .750
DT-1210 1.250 .812 3 3.500 1.250 .200 1.000
T Speed and Feed Info.

R B Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .001 - .002
A Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel 500 - 800 .001 - .002
Insert Info Ex. 1045, 4140, 4340, 52100, 8620
DTI-1511P Lower Carbon Tool Steel 400 - 700 .001 - .002
Ex. P-20, H-13, S-7
Grade X33 Tool Steel 300 - 600 .001 - .002
A .328 Ex. A-2, A-6, D-2, M-2
Stainless Steel
B .187 300 - 600 .001 - .002
Ex. 304, 316, 420, 15-5PH, 17-4PH
T .082 Iron 600 - 1000 .001 - .002
Ex. Cast, Ductile, Nodular
R .015
Nickel & Titanium Alloy
Screw 164T Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .001 - .002
Wrench T-6 Non-Ferrous Metal 1000 - 2500 .001 - .003
Ex. Aluminum, Bronze, Brass

96 WWW.KTOOLINC.COM
