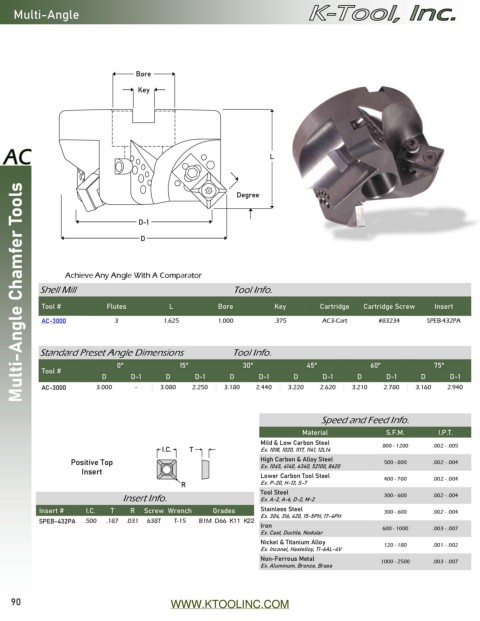

Page 90 - Catalog 15

Multi-Angle

Bore

Key

L

Multi-Angle Chamfer Tools
Degree

D-1
D

Achieve Any Angle With A Comparator
Shell Mill Tool Info.

Tool # Flutes L Bore Key Cartridge Cartridge Screw Insert
AC-3000 3 1.625 1.000 .375 AC3-Cart #83234 SPEB-432PA

Standard Preset Angle Dimensions Tool Info.

0° 15° 30° 45° 60° 75°
Tool #
D D-1 D D-1 D D-1 D D-1 D D-1 D D-1
AC-3000 3.000 - 3.080 2.250 3.180 2.440 3.220 2.620 3.210 2.780 3.160 2.940

Speed and Feed Info.

Material S.F.M. I.P.T.
Mild & Low Carbon Steel
I.C. T Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .005
Positive Top High Carbon & Alloy Steel 500 - 800 .002 - .004
Ex. 1045, 4140, 4340, 52100, 8620
Insert Lower Carbon Tool Steel
R Ex. P-20, H-13, S-7 400 - 700 .002 - .004
Tool Steel
Insert Info. Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .004
Insert # I.C. T R Screw Wrench Grades Stainless Steel 300 - 600 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-432PA .500 .187 .031 638T T-15 B1M C55 X33 X40
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .007
Ex. Aluminum, Bronze, Brass
