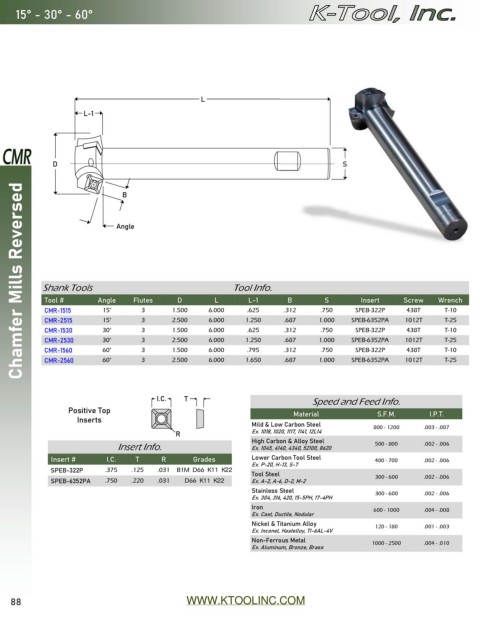

Page 88 - Catalog 15

15° - 30° - 60°

L
L-1

D S

Chamfer Mills Reversed
B

Angle

Shank Tools Tool Info.

Tool # Angle Flutes D L L-1 B S Insert Screw Wrench
CMR-1515 15° 3 1.500 6.000 .625 .312 .750 SPEB-322P 438T T-10
CMR-2515 15° 3 2.500 6.000 1.250 .687 1.000 SPEB-6352PA 1012T T-25
CMR-1530 30° 3 1.500 6.000 .625 .312 .750 SPEB-322P 438T T-10
CMR-2530 30° 3 2.500 6.000 1.250 .687 1.000 SPEB-6352PA 1012T T-25
CMR-1560 60° 3 1.500 6.000 .795 .312 .750 SPEB-322P 438T T-10
CMR-2560 60° 3 2.500 6.000 1.650 .687 1.000 SPEB-6352PA 1012T T-25

I.C. T Speed and Feed Info.

Positive Top Material S.F.M. I.P.T.
Inserts Mild & Low Carbon Steel
R Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .003 - .007
High Carbon & Alloy Steel
Insert Info. Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .006
Insert # I.C. T R Grades Lower Carbon Tool Steel 400 - 700 .002 - .006
Ex. P-20, H-13, S-7
SPEB-322P .375 .125 .031 B1M C55 X33 X40
Tool Steel 300 - 600 .002 - .006
SPEB-6352PA .750 .220 .031 C55 X33 X40 Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .002 - .006
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .004 - .008
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .004 - .010
Ex. Aluminum, Bronze, Brass

88 WWW.KTOOLINC.COM
