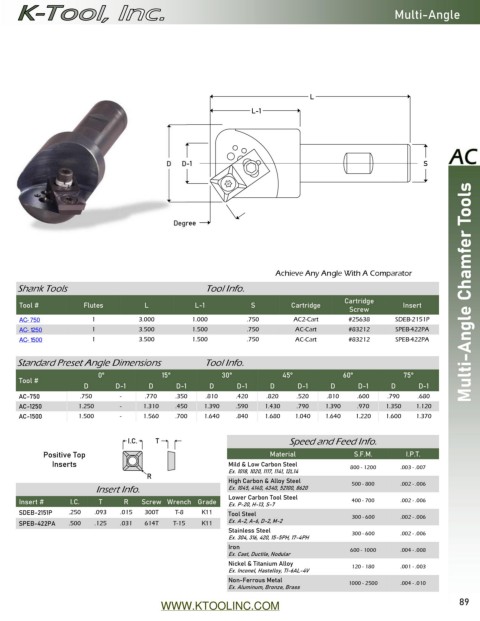

Page 89 - Catalog 15

Multi-Angle

L
L-1

D D-1 S

Degree

Achieve Any Angle With A Comparator
Shank Tools Tool Info. Multi-Angle Chamfer Tools
Cartridge

Tool # Flutes L L-1 S Cartridge Insert
Screw
AC-750 1 3.000 1.000 .750 AC2-Cart #25638 SDEB-2151P
AC-1250 1 3.500 1.500 .750 AC-Cart #83212 SPEB-422PA
AC-1500 1 3.500 1.500 .750 AC-Cart #83212 SPEB-422PA

Standard Preset Angle Dimensions Tool Info.
0° 15° 30° 45° 60° 75°
Tool #
D D-1 D D-1 D D-1 D D-1 D D-1 D D-1
AC-750 .750 - .770 .350 .810 .420 .820 .520 .810 .600 .790 .680
AC-1250 1.250 - 1.310 .450 1.390 .590 1.430 .790 1.390 .970 1.350 1.120
AC-1500 1.500 - 1.560 .700 1.640 .840 1.680 1.040 1.640 1.220 1.600 1.370

I.C. T Speed and Feed Info.
Positive Top Material S.F.M. I.P.T.
Inserts Mild & Low Carbon Steel 800 - 1200 .003 - .007
R Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel 500 - 800 .002 - .006
Insert Info. Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel
Insert # I.C. T R Screw Wrench Grade Ex. P-20, H-13, S-7 400 - 700 .002 - .006
SDEB-2151P .250 .093 .015 300T T-8 X33 Tool Steel 300 - 600 .002 - .006
SPEB-422PA .500 .125 .031 614T T-15 X33 Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .002 - .006
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .004 - .008
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .004 - .010
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 89
