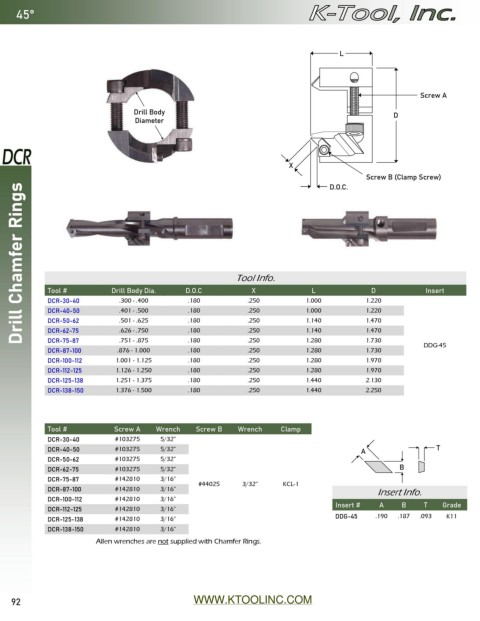

Page 92 - Catalog 15

45°

L

Screw A

Drill Body D
Diameter

X
Screw B (Clamp Screw)
Drill Chamfer Rings
D.O.C.

Tool Info.

Tool # Drill Body Dia. D.O.C X L D Insert
DCR-30-40 .300 - .400 .180 .250 1.000 1.220
DCR-40-50 .401 - .500 .180 .250 1.000 1.220
DCR-50-62 .501 - .625 .180 .250 1.140 1.470
DCR-62-75 .626 - .750 .180 .250 1.140 1.470
DCR-75-87 .751 - .875 .180 .250 1.280 1.730
DDG-45
DCR-87-100 .876 - 1.000 .180 .250 1.280 1.730
DCR-100-112 1.001 - 1.125 .180 .250 1.280 1.970
DCR-112-125 1.126 - 1.250 .180 .250 1.280 1.970
DCR-125-138 1.251 - 1.375 .180 .250 1.440 2.130
DCR-138-150 1.376 - 1.500 .180 .250 1.440 2.250

Tool # Screw A Wrench Screw B Wrench Clamp
DCR-30-40 #103275 5/32”
DCR-40-50 #103275 5/32” A T
DCR-50-62 #103275 5/32”
DCR-62-75 #103275 5/32” B
DCR-75-87 #142810 3/16”
#44025 3/32” KCL-1
DCR-87-100 #142810 3/16” Insert Info.
DCR-100-112 #142810 3/16”
DCR-112-125 #142810 3/16” Insert # A B T Grade
DCR-125-138 #142810 3/16” DDG-45 .190 .187 .093 X33
DCR-138-150 #142810 3/16”
Allen wrenches are not supplied with Chamfer Rings.

92 WWW.KTOOLINC.COM
