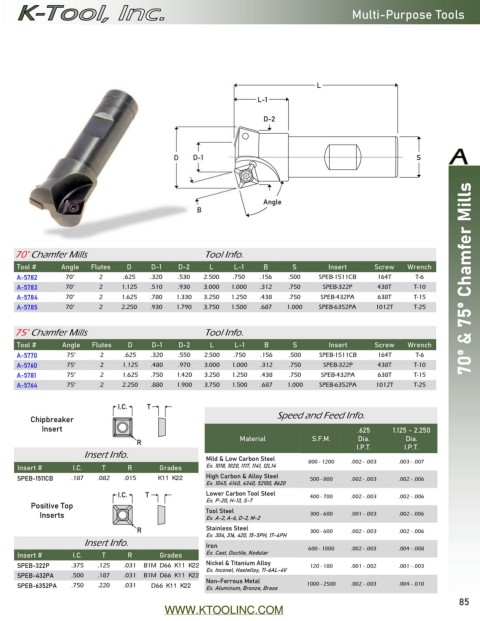

Page 85 - Catalog 15

Multi-Purpose Tools

L
L-1

D-2

D D-1 S

Angle
B

70° Chamfer Mills Tool Info.

Tool # Angle Flutes D D-1 D-2 L L-1 B S Insert Screw Wrench
A-5782 70° 2 .625 .320 .530 2.500 .750 .156 .500 SPEB-1511CB 164T T-6 70⁰ & 75⁰ Chamfer Mills
A-5783 70° 2 1.125 .510 .930 3.000 1.000 .312 .750 SPEB-322P 438T T-10
A-5784 70° 2 1.625 .780 1.330 3.250 1.250 .438 .750 SPEB-432PA 638T T-15
A-5785 70° 2 2.250 .930 1.790 3.750 1.500 .687 1.000 SPEB-6352PA 1012T T-25

75° Chamfer Mills Tool Info.

Tool # Angle Flutes D D-1 D-2 L L-1 B S Insert Screw Wrench
A-5770 75° 2 .625 .320 .550 2.500 .750 .156 .500 SPEB-1511CB 164T T-6
A-5760 75° 2 1.125 .480 .970 3.000 1.000 .312 .750 SPEB-322P 438T T-10
A-5781 75° 2 1.625 .750 1.420 3.250 1.250 .438 .750 SPEB-432PA 638T T-15
A-5764 75° 2 2.250 .880 1.900 3.750 1.500 .687 1.000 SPEB-6352PA 1012T T-25

I.C. T

Chipbreaker Speed and Feed Info.
Insert .625 1.125 - 2.250
Dia.
Dia.
R Material S.F.M. I.P.T. I.P.T.
Insert Info. Mild & Low Carbon Steel
Insert # I.C. T R Grades Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .003 .003 - .007
SPEB-1511CB .187 .082 .015 X33 X40 High Carbon & Alloy Steel 500 - 800 .002 - .003 .002 - .006
Ex. 1045, 4140, 4340, 52100, 8620
I.C. T Lower Carbon Tool Steel 400 - 700 .002 - .003 .002 - .006
Positive Top Ex. P-20, H-13, S-7
Inserts Tool Steel 300 - 600 .001 - .003 .002 - .006
Ex. A-2, A-6, D-2, M-2
R Stainless Steel 300 - 600 .002 - .003 .002 - .006
Ex. 304, 316, 420, 15-5PH, 17-4PH
Insert Info. Iron 600 - 1000 .002 - .003 .004 - .008
Insert # I.C. T R Grades Ex. Cast, Ductile, Nodular
SPEB-322P .375 .125 .031 B1M C55 X33 X40 Nickel & Titanium Alloy 120 - 180 .001 - .002 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
SPEB-432PA .500 .187 .031 B1M C55 X33 X40
SPEB-6352PA .750 .220 .031 C55 X33 X40 Non-Ferrous Metal 1000 - 2500 .002 - .003 .004 - .010
Ex. Aluminum, Bronze, Brass
85
WWW.KTOOLINC.COM
