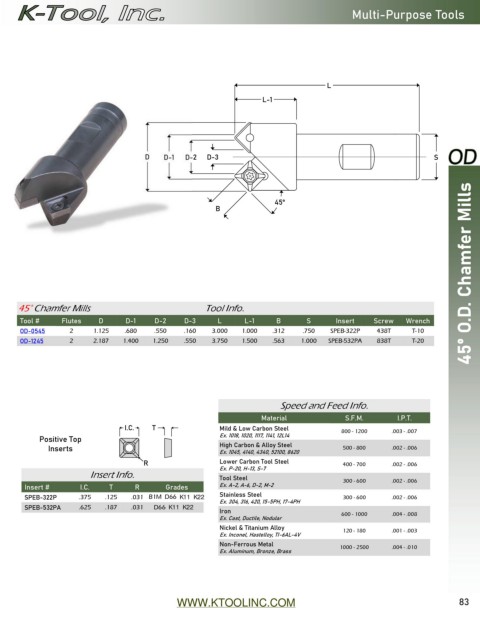

Page 83 - Catalog 15

Multi-Purpose Tools

L
L-1

D D-1 D-2 D-3 S

45°
B

45° Chamfer Mills Tool Info. 45⁰ O.D. Chamfer Mills

Tool # Flutes D D-1 D-2 D-3 L L-1 B S Insert Screw Wrench
OD-0545 2 1.125 .680 .550 .160 3.000 1.000 .312 .750 SPEB-322P 438T T-10
OD-1245 2 2.187 1.400 1.250 .550 3.750 1.500 .563 1.000 SPEB-532PA 838T T-20

Speed and Feed Info.
Material S.F.M. I.P.T.
I.C. T Mild & Low Carbon Steel 800 - 1200 .003 - .007
Positive Top Ex. 1018, 1020, 1117, 1141, 12L14
Inserts High Carbon & Alloy Steel 500 - 800 .002 - .006
Ex. 1045, 4140, 4340, 52100, 8620
R Lower Carbon Tool Steel 400 - 700 .002 - .006
Ex. P-20, H-13, S-7
Insert Info. Tool Steel
Insert # I.C. T R Grades Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .006
SPEB-322P .375 .125 .031 B1M C55 X33 X40 Stainless Steel 300 - 600 .002 - .006
Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-532PA .625 .187 .031 C55 X33 X40
Iron 600 - 1000 .004 - .008
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .004 - .010
Ex. Aluminum, Bronze, Brass
