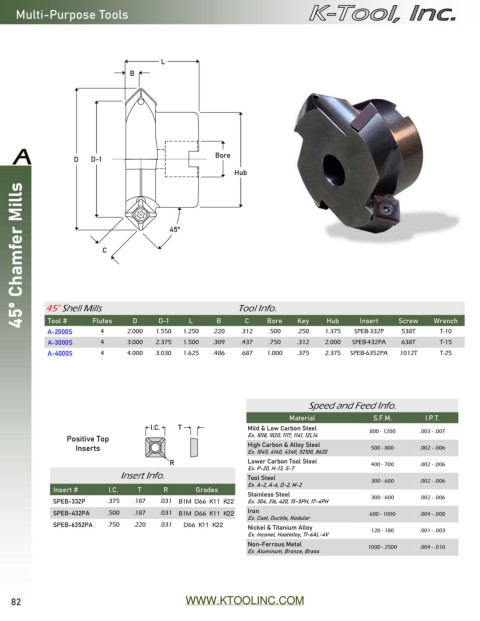

Page 82 - Catalog 15

Multi-Purpose Tools

L
B

Bore
D D-1
Hub
45⁰ Chamfer Mills

45°

C

45° Shell Mills Tool Info.
Tool # Flutes D D-1 L B C Bore Key Hub Insert Screw Wrench
A-2000S 4 2.000 1.550 1.250 .220 .312 .500 .250 1.375 SPEB-332P 538T T-10
A-3000S 4 3.000 2.375 1.500 .309 .437 .750 .312 2.000 SPEB-432PA 638T T-15
A-4000S 4 4.000 3.030 1.625 .486 .687 1.000 .375 2.375 SPEB-6352PA 1012T T-25

Speed and Feed Info.
Material S.F.M. I.P.T.
I.C. T Mild & Low Carbon Steel 800 - 1200 .003 - .007
Positive Top Ex. 1018, 1020, 1117, 1141, 12L14
Inserts High Carbon & Alloy Steel 500 - 800 .002 - .006
Ex. 1045, 4140, 4340, 52100, 8620
R Lower Carbon Tool Steel 400 - 700 .002 - .006
Ex. P-20, H-13, S-7
Insert Info. Tool Steel
Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .006
Insert # I.C. T R Grades
Stainless Steel 300 - 600 .002 - .006
SPEB-332P .375 .187 .031 B1M C55 X33 X40 Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-432PA .500 .187 .031 B1M C55 X33 X40 Iron 600 - 1000 .004 - .008
Ex. Cast, Ductile, Nodular
SPEB-6352PA .750 .220 .031 C55 X33 X40 Nickel & Titanium Alloy
Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .001 - .003
Non-Ferrous Metal 1000 - 2500 .004 - .010
Ex. Aluminum, Bronze, Brass

82 WWW.KTOOLINC.COM
