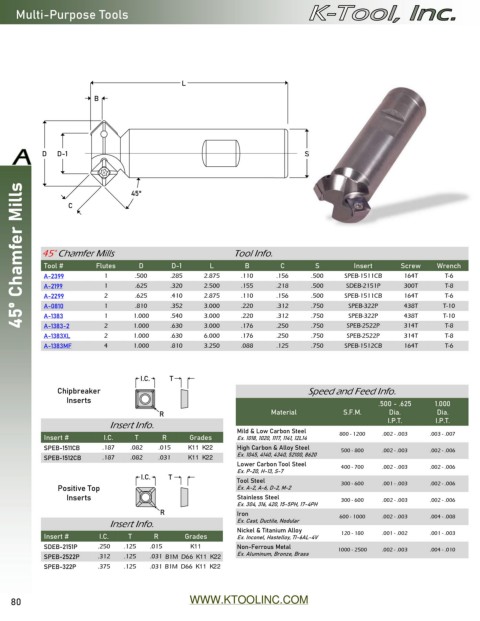

Page 80 - Catalog 15

Multi-Purpose Tools

L

B

D D-1 S

45⁰ Chamfer Mills
45°
C

45° Chamfer Mills Tool Info.

Tool # Flutes D D-1 L B C S Insert Screw Wrench
A-2399 1 .500 .285 2.875 .110 .156 .500 SPEB-1511CB 164T T-6
A-2199 1 .625 .320 2.500 .155 .218 .500 SDEB-2151P 300T T-8
A-2299 2 .625 .410 2.875 .110 .156 .500 SPEB-1511CB 164T T-6
A-0810 1 .810 .352 3.000 .220 .312 .750 SPEB-322P 438T T-10
A-1383 1 1.000 .540 3.000 .220 .312 .750 SPEB-322P 438T T-10
A-1383-2 2 1.000 .630 3.000 .176 .250 .750 SPEB-2522P 314T T-8
A-1383XL 2 1.000 .630 6.000 .176 .250 .750 SPEB-2522P 314T T-8
A-1383MF 4 1.000 .810 3.250 .088 .125 .750 SPEB-1512CB 164T T-6

I.C. T
Chipbreaker Speed and Feed Info.

Inserts .500 - .625 1.000
R Material S.F.M. Dia. Dia.
Insert Info. I.P.T. I.P.T.
Mild & Low Carbon Steel
Insert # I.C. T R Grades Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .003 .003 - .007
SPEB-1511CB .187 .082 .015 X33 X40 High Carbon & Alloy Steel 500 - 800 .002 - .003 .002 - .006
SPEB-1512CB .187 .082 .031 X33 X40 Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel 400 - 700 .002 - .003 .002 - .006
Ex. P-20, H-13, S-7
I.C. T Tool Steel
Positive Top Ex. A-2, A-6, D-2, M-2 300 - 600 .001 - .003 .002 - .006
Inserts Stainless Steel 300 - 600 .002 - .003 .002 - .006
R Ex. 304, 316, 420, 15-5PH, 17-4PH 600 - 1000 .002 - .003 .004 - .008
Iron
Insert Info. Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy
Insert # I.C. T R Grades Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .001 - .002 .001 - .003
SDEB-2151P .250 .125 .015 X33 Non-Ferrous Metal 1000 - 2500 .002 - .003 .004 - .010
SPEB-2522P .312 .125 .031 B1M C55 X33 X40 Ex. Aluminum, Bronze, Brass
SPEB-322P .375 .125 .031 B1M C55 X33 X40
