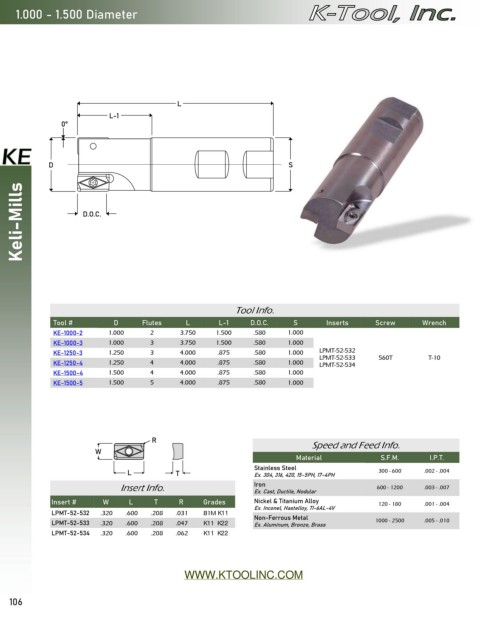

Page 106 - Catalog 15
P. 106
1.000 - 1.500 Diameter
L
L-1
0°
D S
Keli-Mills D.O.C.
Tool Info.
Tool # D Flutes L L-1 D.O.C. S Inserts Screw Wrench
KE-1000-2 1.000 2 3.750 1.500 .580 1.000
KE-1000-3 1.000 3 3.750 1.500 .580 1.000
KE-1250-3 1.250 3 4.000 .875 .580 1.000 LPMT-52-532
LPMT-52-533 560T T-10
KE-1250-4 1.250 4 4.000 .875 .580 1.000 LPMT-52-534
KE-1500-4 1.500 4 4.000 .875 .580 1.000
KE-1500-5 1.500 5 4.000 .875 .580 1.000
R Speed and Feed Info.
W
Material S.F.M. I.P.T.
Stainless Steel
L T Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
Insert Info. Iron 600 - 1200 .003 - .007
Ex. Cast, Ductile, Nodular
Insert # W L T R Grades Nickel & Titanium Alloy 120 - 180 .001 - .004
Ex. Inconel, Hastelloy, TI-6AL-4V
LPMT-52-532 .320 .600 .208 .031 B1M X33 X40 Non-Ferrous Metal
LPMT-52-533 .320 .600 .208 .047 X33 X40 Ex. Aluminum, Bronze, Brass 1000 - 2500 .005 - .010
LPMT-52-534 .320 .600 .208 .062 X33 X40
WWW.KTOOLINC.COM
106
