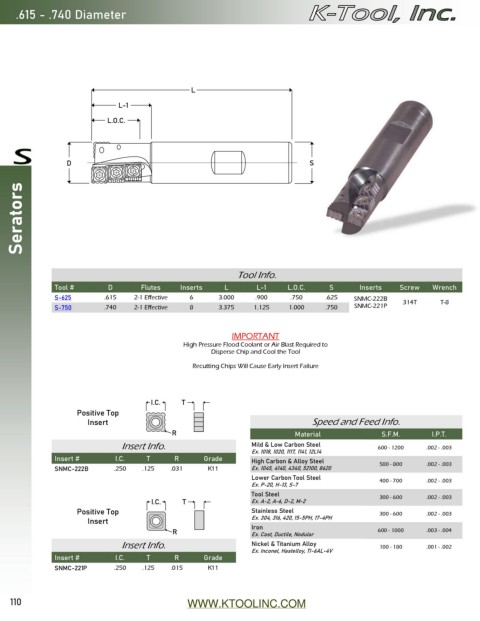

Page 110 - Catalog 15

.615 - .740 Diameter

L
L-1
L.O.C.

D S

Serators

Tool Info.

Tool # D Flutes Inserts L L-1 L.O.C. S Inserts Screw Wrench
S-625 .615 2-1 Effective 6 3.000 .900 .750 .625 SNMC-222B
S-750 .740 2-1 Effective 8 3.375 1.125 1.000 .750 SNMC-221P 314T T-8

IMPORTANT
High Pressure Flood Coolant or Air Blast Required to
Disperse Chip and Cool the Tool

Recutting Chips Will Cause Early Insert Failure

I.C. T
Positive Top

Insert Speed and Feed Info.
R Material S.F.M. I.P.T.
Insert Info. Mild & Low Carbon Steel 600 - 1200 .002 - .003
Ex. 1018, 1020, 1117, 1141, 12L14
Insert # I.C. T R Grade High Carbon & Alloy Steel
SNMC-222B .250 .125 .031 X33 Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .003
Lower Carbon Tool Steel 400 - 700 .002 - .003
Ex. P-20, H-13, S-7
Tool Steel 300 - 600 .002 - .003
I.C. T Ex. A-2, A-6, D-2, M-2
Positive Top Stainless Steel 300 - 600 .002 - .003
Insert Ex. 304, 316, 420, 15-5PH, 17-4PH
R Iron 600 - 1000 .003 - .004
Ex. Cast, Ductile, Nodular
Insert Info. Nickel & Titanium Alloy 100 - 180 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
Insert # I.C. T R Grade
SNMC-221P .250 .125 .015 X33

110 WWW.KTOOLINC.COM
