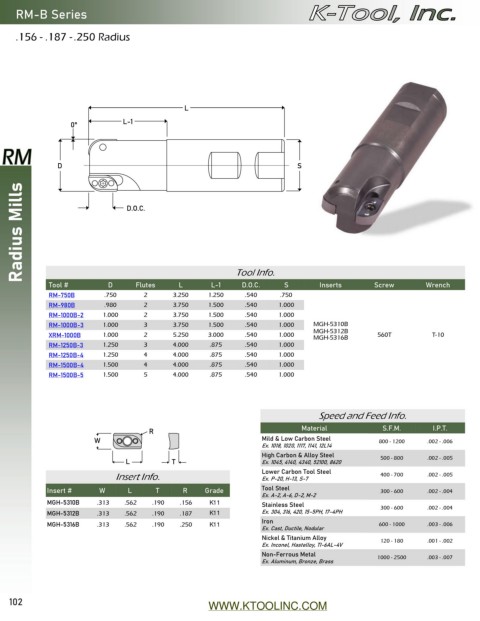

RM-B Series

.156 - .187 - .218 - .250 Radius

L

0° L-1

D S

Radius Mills D.O.C.

Tool # D Flutes L L-1 Tool Info. S Inserts Screw Wrench
D.O.C.
RM-750B .750 2 3.250 1.250 .540 .750
RM-980B .980 2 3.750 1.500 .540 1.000
RM-1000B-2 1.000 2 3.750 1.500 .540 1.000
RM-1000B-3 1.000 3 3.750 1.500 .540 1.000 MGH-5310B
MGH-5312B
XRM-1000B 1.000 2 5.250 3.000 .540 1.000 560T T-10
MGH-5314B
RM-1250B-3 1.250 3 4.000 .875 .540 1.000 MGH-5316B
RM-1250B-4 1.250 4 4.000 .875 .540 1.000
RM-1500B-4 1.500 4 4.000 .875 .540 1.000
RM-1500B-5 1.500 5 4.000 .875 .540 1.000

Speed and Feed Info.

R Material S.F.M. I.P.T.
W Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel
L T Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .005
Lower Carbon Tool Steel
Insert Info. Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Insert # W L T R Grade Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
MGH-5310B .313 .562 .190 .156 X33 Stainless Steel 300 - 600 .002 - .004
MGH-5312B .313 .562 .190 .187 X33 Ex. 304, 316, 420, 15-5PH, 17-4PH
MGH-5314B .313 .562 .190 .218 X33 Iron 600 - 1000 .003 - .006
Ex. Cast, Ductile, Nodular
MGH-5316B .313 .562 .190 .250 X33 Nickel & Titanium Alloy
Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .001 - .002
Non-Ferrous Metal 1000 - 2500 .003 - .007
Ex. Aluminum, Bronze, Brass
