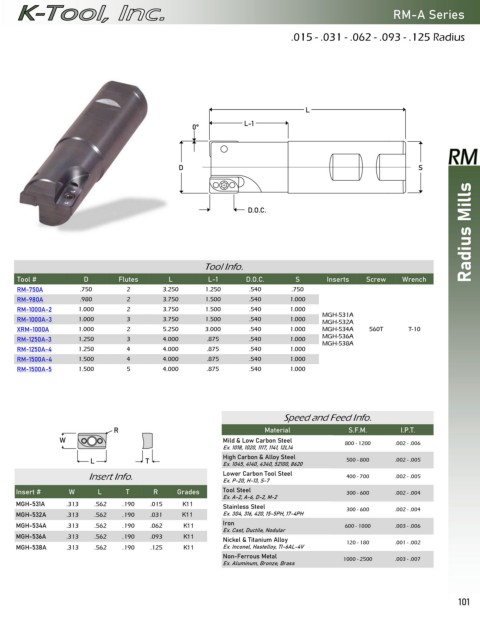

RM-A Series

.015 - .031 - .062 - .093 - .125 Radius

L
L-1
0°

D S

Radius Mills

D.O.C.

Tool Info.
Tool # D Flutes L L-1 D.O.C. S Inserts Screw Wrench
RM-750A .750 2 3.250 1.250 .540 .750
RM-980A .980 2 3.750 1.500 .540 1.000
RM-1000A-2 1.000 2 3.750 1.500 .540 1.000 MGH-531A
RM-1000A-3 1.000 3 3.750 1.500 .540 1.000 MGH-532A
XRM-1000A 1.000 2 5.250 3.000 .540 1.000 MGH-534A 560T T-10
MGH-536A
RM-1250A-3 1.250 3 4.000 .875 .540 1.000 MGH-538A
RM-1250A-4 1.250 4 4.000 .875 .540 1.000
RM-1500A-4 1.500 4 4.000 .875 .540 1.000
RM-1500A-5 1.500 5 4.000 .875 .540 1.000

Speed and Feed Info.

R Material S.F.M. I.P.T.
W Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel
L T Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .005
Insert Info. Lower Carbon Tool Steel 400 - 700 .002 - .005
Ex. P-20, H-13, S-7
Insert # W L T R Grades Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
MGH-531A .313 .562 .190 .015 X33 Stainless Steel 300 - 600 .002 - .004
MGH-532A .313 .562 .190 .031 B1M X33 Ex. 304, 316, 420, 15-5PH, 17-4PH
MGH-534A .313 .562 .190 .062 X33 Iron 600 - 1000 .003 - .006
Ex. Cast, Ductile, Nodular
MGH-536A .313 .562 .190 .093 X33 Nickel & Titanium Alloy
MGH-538A .313 .562 .190 .125 X33 Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .001 - .002
Non-Ferrous Metal 1000 - 2500 .003 - .007
Ex. Aluminum, Bronze, Brass
