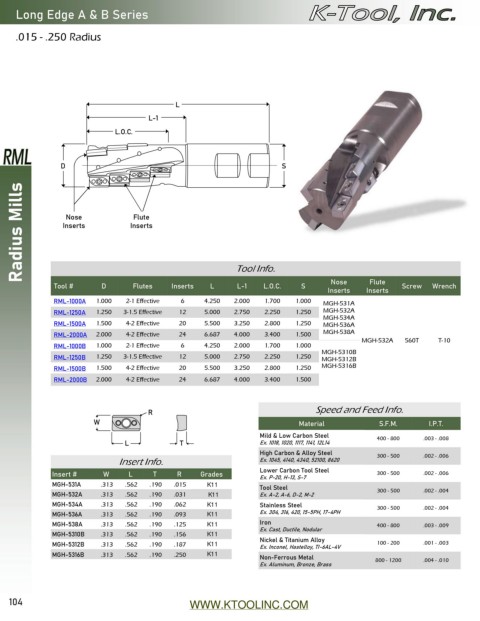

Page 104 - Catalog 15

Long Edge A & B Series

.015 - .250 Radius

L
L-1
L.O.C.

D S

Radius Mills Inserts Inserts

Nose
Flute

L-1
L.O.C.
Tool # D Flutes Inserts L Tool Info. S Nose Flute Screw Wrench
Inserts Inserts
RML-1000A 1.000 2-1 Effective 6 4.250 2.000 1.700 1.000 MGH-531A
RML-1250A 1.250 3-1.5 Effective 12 5.000 2.750 2.250 1.250 MGH-532A
MGH-534A
RML-1500A 1.500 4-2 Effective 20 5.500 3.250 2.800 1.250 MGH-536A
RML-2000A 2.000 4-2 Effective 24 6.687 4.000 3.400 1.500 MGH-538A
MGH-532A 560T T-10
RML-1000B 1.000 2-1 Effective 6 4.250 2.000 1.700 1.000
MGH-5310B
RML-1250B 1.250 3-1.5 Effective 12 5.000 2.750 2.250 1.250 MGH-5312B
RML-1500B 1.500 4-2 Effective 20 5.500 3.250 2.800 1.250 MGH-5314B
MGH-5316B
RML-2000B 2.000 4-2 Effective 24 6.687 4.000 3.400 1.500

R Speed and Feed Info.
W Material S.F.M. I.P.T.
Mild & Low Carbon Steel 400 - 800 .003 - .008
L T Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel 300 - 500 .002 - .006
Insert Info. Ex. 1045, 4140, 4340, 52100, 8620
Insert # W L T R Grades Lower Carbon Tool Steel 300 - 500 .002 - .006
Ex. P-20, H-13, S-7
MGH-531A .313 .562 .190 .015 X33 Tool Steel
MGH-532A .313 .562 .190 .031 B1M X33 Ex. A-2, A-6, D-2, M-2 300 - 500 .002 - .004
MGH-534A .313 .562 .190 .062 X33 Stainless Steel 300 - 500 .002 - .004
MGH-536A .313 .562 .190 .093 X33 Ex. 304, 316, 420, 15-5PH, 17-4PH
MGH-538A .313 .562 .190 .125 X33 Iron 400 - 800 .003 - .009
Ex. Cast, Ductile, Nodular
MGH-5310B .313 .562 .190 .156 X33
MGH-5312B .313 .562 .190 .187 X33 Nickel & Titanium Alloy 100 - 200 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
MGH-5314B .313 .562 .190 .218 X33 Non-Ferrous Metal
MGH-5316B .313 .562 .190 .250 X33 Ex. Aluminum, Bronze, Brass 800 - 1200 .004 - .010
