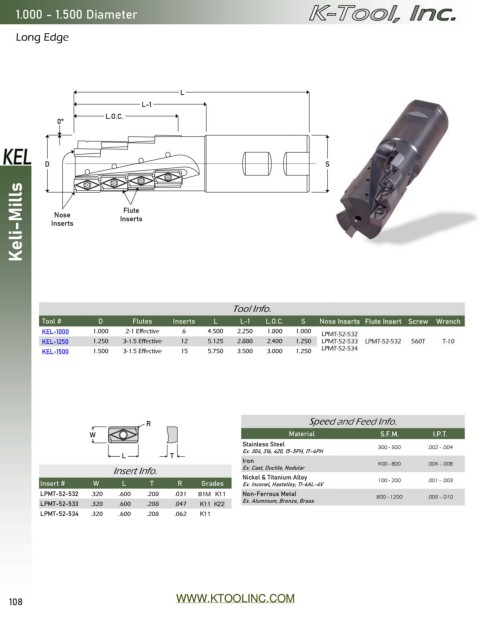

Page 108 - Catalog 15

1.000 - 1.500 Diameter

Long Edge

L
L-1
L.O.C.
0°

D S

Keli-Mills Inserts Inserts

Flute
Nose

Tool Info.
Tool # D Flutes Inserts L L-1 L.O.C. S Nose Inserts Flute Insert Screw Wrench
KEL-1000 1.000 2-1 Effective 6 4.500 2.250 1.800 1.000 LPMT-52-532
KEL-1250 1.250 3-1.5 Effective 12 5.125 2.880 2.400 1.250 LPMT-52-533 LPMT-52-532 560T T-10
KEL-1500 1.500 3-1.5 Effective 15 5.750 3.500 3.000 1.250 LPMT-52-534

R Speed and Feed Info.
W Material S.F.M. I.P.T.
Stainless Steel 300 - 500 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
L T
Iron 400 - 800 .004 - .008
Insert Info. Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy
Insert # W L T R Grades Ex. Inconel, Hastelloy, TI-6AL-4V 100 - 200 .001 - .003
LPMT-52-532 .320 .600 .208 .031 B1M X33 X40 Non-Ferrous Metal 800 - 1200 .005 - .010
LPMT-52-533 .320 .600 .208 .047 X33 X40 Ex. Aluminum, Bronze, Brass
LPMT-52-534 .320 .600 .208 .062 X33 X40

108 WWW.KTOOLINC.COM
