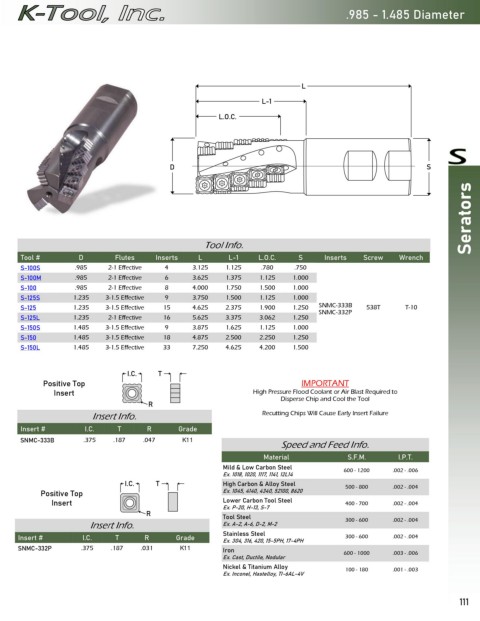

Page 111 - Catalog 15

.985 - 1.485 Diameter

L
L-1

L.O.C.

D S

Serators

Tool Info.

Tool # D Flutes Inserts L L-1 L.O.C. S Inserts Screw Wrench
S-100S .985 2-1 Effective 4 3.125 1.125 .780 .750
S-100M .985 2-1 Effective 6 3.625 1.375 1.125 1.000
S-100 .985 2-1 Effective 8 4.000 1.750 1.500 1.000
S-125S 1.235 3-1.5 Effective 9 3.750 1.500 1.125 1.000 SNMC-333B
S-125 1.235 3-1.5 Effective 15 4.625 2.375 1.900 1.250 SNGC-333H 538T T-10
S-125L 1.235 2-1 Effective 16 5.625 3.375 3.062 1.250 SNMC-332P
S-150S 1.485 3-1.5 Effective 9 3.875 1.625 1.125 1.000
S-150 1.485 3-1.5 Effective 18 4.875 2.500 2.250 1.250
S-150L 1.485 3-1.5 Effective 33 7.250 4.625 4.200 1.500

I.C. T
Positive Top IMPORTANT
Insert High Pressure Flood Coolant or Air Blast Required to
R Disperse Chip and Cool the Tool

Insert Info. Recutting Chips Will Cause Early Insert Failure
Insert # I.C. T R Grade
SNMC-333B .375 .187 .047 X33
Speed and Feed Info.

I.C. T Material S.F.M. I.P.T.
Positive Top Mild & Low Carbon Steel 600 - 1200 .002 - .006
Insert Ex. 1018, 1020, 1117, 1141, 12L14
R High Carbon & Alloy Steel 500 - 800 .002 - .004
Ex. 1045, 4140, 4340, 52100, 8620
Insert Info. Lower Carbon Tool Steel
Ex. P-20, H-13, S-7 400 - 700 .002 - .004
Insert # I.C. T R Grade
Tool Steel
SNGC-333H .375 .187 .047 X33 Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .004
Stainless Steel
I.C. T Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
Positive Top Iron 600 - 1000 .003 - .006
Insert Ex. Cast, Ductile, Nodular
R Nickel & Titanium Alloy 100 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Insert Info.
Insert # I.C. T R Grade
SNMC-332P .375 .187 .031 X33 111
