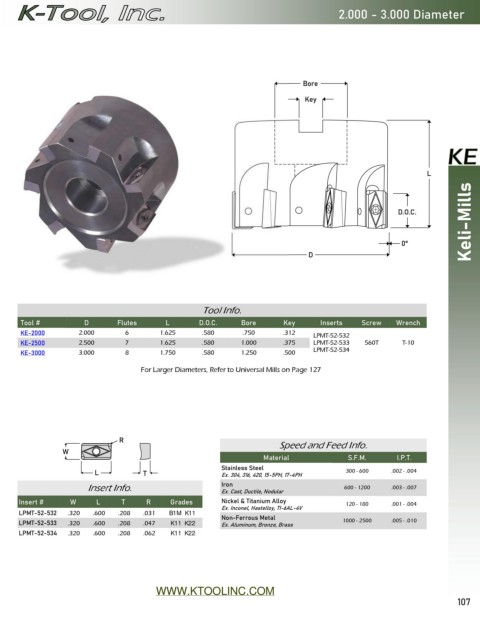

Page 107 - Catalog 15
P. 107

2.000 - 3.000 Diameter









                                                                              Bore

                                                                               Key










                                                                                                              L
                                                                                                                         Keli-Mills


                                                                                                       D.O.C.



                                                                                                       0°
                                                                                D







                                                     Tool Info.
      Tool #          D        Flutes      L        D.O.C.    Bore       Key       Inserts   Screw    Wrench
      KE-2000        2.000       6        1.625      .580      .750      .312    LPMT-52-532
      KE-2500        2.500       7        1.625      .580     1.000      .375    LPMT-52-533   560T     T-10
      KE-3000        3.000       8        1.750      .580     1.250      .500    LPMT-52-534
                                     For Larger Diameters, Refer to Universal Mills on Page 127










                               R                                        Speed and Feed Info.

                 W
                                                                    Material              S.F.M.      I.P.T.
                                                         Stainless Steel
                         L           T                   Ex. 304, 316, 420, 15-5PH, 17-4PH   300 - 600    .002 - .004
                       Insert Info.                      Iron                            600 - 1200   .003 - .007
                                                         Ex. Cast, Ductile, Nodular
      Insert #     W     L      T     R     Grades       Nickel & Titanium Alloy         120 - 180   .001 - .004
                                                         Ex. Inconel, Hastelloy, TI-6AL-4V
      LPMT-52-532   .320   .600   .208   .031   B1M X33 X40   Non-Ferrous Metal
      LPMT-52-533   .320   .600   .208   .047   X33  X40   Ex. Aluminum, Bronze, Brass   1000 - 2500   .005 - .010
      LPMT-52-534   .320   .600   .208   .062   X33  X40







                                         WWW.KTOOLINC.COM
                                                                                                                      107
