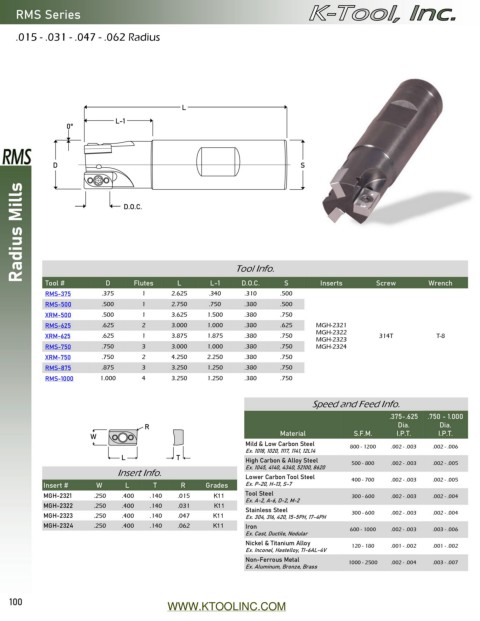

Page 100 - Catalog 15

RMS Series

.015 - .031 - .047 - .062 Radius

L
L-1
0°

D S

Radius Mills D.O.C.

S
L-1
D.O.C.
L
D
.310
RMS-375
1
Tool # .375 Flutes 2.625 .340 Tool Info. .500 Inserts Screw Wrench
RMS-500 .500 1 2.750 .750 .380 .500
XRM-500 .500 1 3.625 1.500 .380 .750
RMS-625 .625 2 3.000 1.000 .380 .625 MGH-2321
MGH-2322
XRM-625 .625 1 3.875 1.875 .380 .750 314T T-8
MGH-2323
RMS-750 .750 3 3.000 1.000 .380 .750 MGH-2324
XRM-750 .750 2 4.250 2.250 .380 .750
RMS-875 .875 3 3.250 1.250 .380 .750
RMS-1000 1.000 4 3.250 1.250 .380 .750

Speed and Feed Info.
.375-.625 .750 - 1.000
R Dia. Dia.
W Material S.F.M. I.P.T. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .003 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
L T High Carbon & Alloy Steel
Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .003 .002 - .005
Insert Info. Lower Carbon Tool Steel
Insert # W L T R Grades Ex. P-20, H-13, S-7 400 - 700 .002 - .003 .002 - .005
MGH-2321 .250 .400 .140 .015 X33 Tool Steel 300 - 600 .002 - .003 .002 - .004
Ex. A-2, A-6, D-2, M-2
MGH-2322 .250 .400 .140 .031 B1M X33
Stainless Steel
MGH-2323 .250 .400 .140 .047 X33 Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .003 .002 - .004
MGH-2324 .250 .400 .140 .062 X33 Iron 600 - 1000 .002 - .003 .003 - .006
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .002 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .002 - .004 .003 - .007
Ex. Aluminum, Bronze, Brass

100
