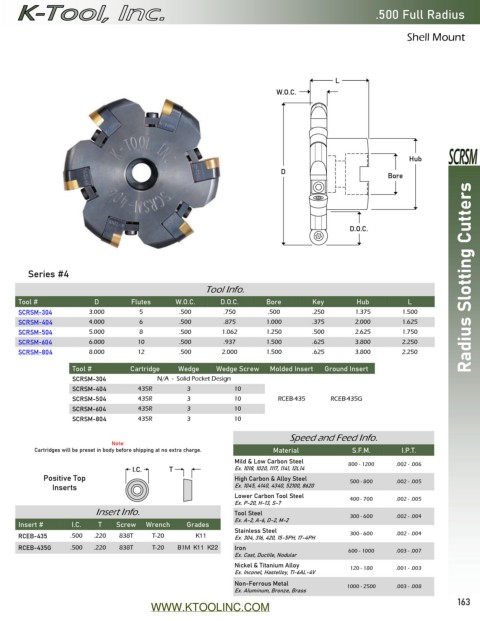

Page 163 - Catalog 15

.500 Full Radius

Shell Mount

L
W.O.C.

Hub
D
Bore

D.O.C.

Series #4 Radius Slotting Cutters
Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub L
SCRSM-304 3.000 5 .500 .750 .500 .250 1.375 1.500
SCRSM-404 4.000 6 .500 .875 1.000 .375 2.000 1.625
SCRSM-504 5.000 8 .500 1.062 1.250 .500 2.625 1.750
SCRSM-604 6.000 10 .500 .937 1.500 .625 3.800 2.250
SCRSM-804 8.000 12 .500 2.000 1.500 .625 3.800 2.250
Tool # Cartridge Wedge Wedge Screw Molded Insert Ground Insert
SCRSM-304 N/A - Solid Pocket Design
SCRSM-404 435R 3 10
SCRSM-504 435R 3 10 RCEB-435 RCEB-435G
SCRSM-604 435R 3 10
SCRSM-804 435R 3 10

Speed and Feed Info.
Note:
Cartridges will be preset in body before shipping at no extra charge. Material S.F.M. I.P.T.
Mild & Low Carbon Steel
I.C. T Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .006
Positive Top High Carbon & Alloy Steel 500 - 800 .002 - .005
Inserts Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel 400 - 700 .002 - .005
Ex. P-20, H-13, S-7
Insert Info. Tool Steel
Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .004
Insert # I.C. T Screw Wrench Grades
Stainless Steel
RCEB-435 .500 .220 838T T-20 A10M X33 Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
RCEB-435G .500 .220 838T T-20 B1M X33 X40 Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .008
Ex. Aluminum, Bronze, Brass
163
