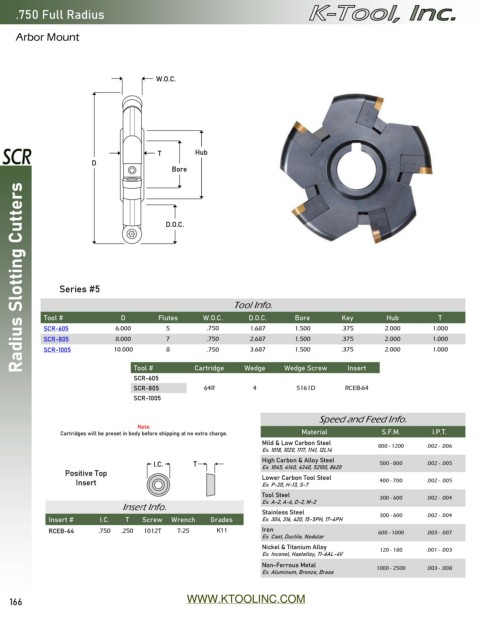

Page 166 - Catalog 15

.750 Full Radius

Arbor Mount

W.O.C.

T Hub
D
Bore

Radius Slotting Cutters

D.O.C.

Series #5

Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub T
SCR-605 6.000 5 .750 1.687 1.500 .375 2.000 1.000
SCR-805 8.000 7 .750 2.687 1.500 .375 2.000 1.000
SCR-1005 10.000 8 .750 3.687 1.500 .375 2.000 1.000

Tool # Cartridge Wedge Wedge Screw Insert
SCR-605
SCR-805 64R 4 5161D RCEB-64
SCR-1005

Speed and Feed Info.

Note:
Cartridges will be preset in body before shipping at no extra charge. Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
I.C. T High Carbon & Alloy Steel 500 - 800 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Positive Top Lower Carbon Tool Steel
Insert Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
Insert Info.
Stainless Steel
Insert # I.C. T Screw Wrench Grades Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
RCEB-64 .750 .250 1012T T-25 A10M X33 Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .008
Ex. Aluminum, Bronze, Brass

166 WWW.KTOOLINC.COM
