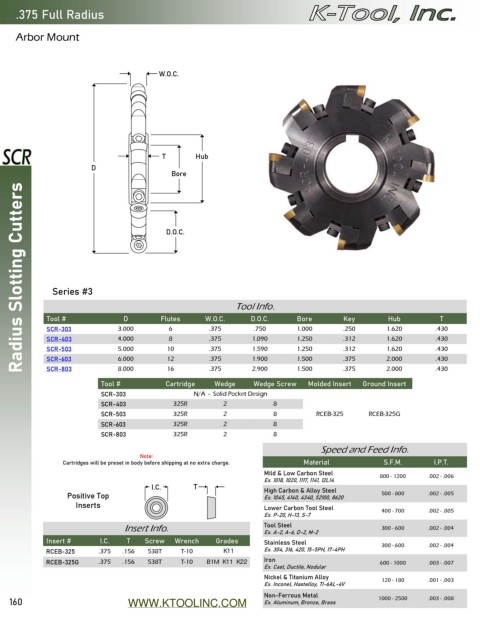

Page 160 - Catalog 15

.375 Full Radius

Arbor Mount

W.O.C.

T Hub
D
Bore
Radius Slotting Cutters

D.O.C.

Series #3
Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub T
SCR-303 3.000 6 .375 .750 1.000 .250 1.620 .430
SCR-403 4.000 8 .375 1.090 1.250 .312 1.620 .430
SCR-503 5.000 10 .375 1.590 1.250 .312 1.620 .430
SCR-603 6.000 12 .375 1.900 1.500 .375 2.000 .430
SCR-803 8.000 16 .375 2.900 1.500 .375 2.000 .430
Tool # Cartridge Wedge Wedge Screw Molded Insert Ground Insert
SCR-303 N/A - Solid Pocket Design
SCR-403 325R 2 8
SCR-503 325R 2 8 RCEB-325 RCEB-325G
SCR-603 325R 2 8
SCR-803 325R 2 8

Speed and Feed Info.
Note:
Cartridges will be preset in body before shipping at no extra charge. Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
T
I.C.
Positive Top High Carbon & Alloy Steel 500 - 800 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Inserts Lower Carbon Tool Steel
Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Insert Info. Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
Insert # I.C. T Screw Wrench Grades Stainless Steel 300 - 600 .002 - .004
RCEB-325 .375 .156 538T T-10 A10M X33 Ex. 304, 316, 420, 15-5PH, 17-4PH
RCEB-325G .375 .156 538T T-10 B1M X33 X40 Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
160 WWW.KTOOLINC.COM Non-Ferrous Metal 1000 - 2500 .003 - .008
Ex. Aluminum, Bronze, Brass
