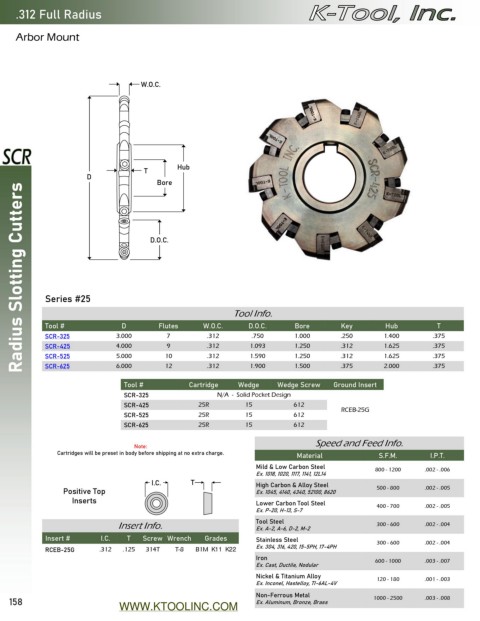

Page 158 - Catalog 15

.312 Full Radius

Arbor Mount

W.O.C.

Hub
T
D
Bore
Radius Slotting Cutters

D.O.C.

Series #25
Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub T
SCR-325 3.000 7 .312 .750 1.000 .250 1.400 .375
SCR-425 4.000 9 .312 1.093 1.250 .312 1.625 .375
SCR-525 5.000 10 .312 1.590 1.250 .312 1.625 .375
SCR-625 6.000 12 .312 1.900 1.500 .375 2.000 .375

Tool # Cartridge Wedge Wedge Screw Ground Insert
SCR-325 N/A - Solid Pocket Design
SCR-425 25R 15 612 RCEB-25G
SCR-525 25R 15 612
SCR-625 25R 15 612

Speed and Feed Info.
Note:
Cartridges will be preset in body before shipping at no extra charge. Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
I.C. T High Carbon & Alloy Steel
Positive Top Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .005
Inserts Lower Carbon Tool Steel
Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Insert Info. Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
Insert # I.C. T Screw Wrench Grades Stainless Steel 300 - 600 .002 - .004
RCEB-25G .312 .125 314T T-8 B1M X33 X40 Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal
158 Ex. Aluminum, Bronze, Brass 1000 - 2500 .003 - .008
WWW.KTOOLINC.COM
