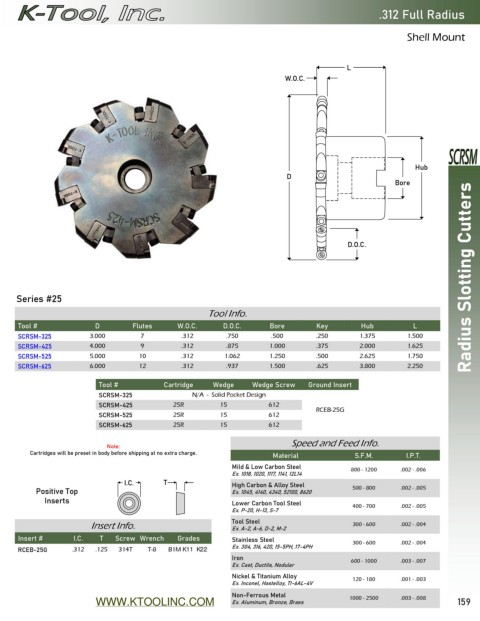

Page 159 - Catalog 15

.312 Full Radius

Shell Mount

L
W.O.C.

Hub
D
Bore

D.O.C.

Series #25 Radius Slotting Cutters
Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub L
SCRSM-325 3.000 7 .312 .750 .500 .250 1.375 1.500
SCRSM-425 4.000 9 .312 .875 1.000 .375 2.000 1.625
SCRSM-525 5.000 10 .312 1.062 1.250 .500 2.625 1.750
SCRSM-625 6.000 12 .312 .937 1.500 .625 3.800 2.250

Tool # Cartridge Wedge Wedge Screw Ground Insert
SCRSM-325 N/A - Solid Pocket Design
SCRSM-425 25R 15 612 RCEB-25G
SCRSM-525 25R 15 612
SCRSM-625 25R 15 612

Speed and Feed Info.

Note:
Cartridges will be preset in body before shipping at no extra charge. Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
I.C. T High Carbon & Alloy Steel
Positive Top Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .005
Inserts Lower Carbon Tool Steel
Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Insert Info. Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
Insert # I.C. T Screw Wrench Grades Stainless Steel 300 - 600 .002 - .004
RCEB-25G .312 .125 314T T-8 B1M X33 X40 Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal
WWW.KTOOLINC.COM Ex. Aluminum, Bronze, Brass 1000 - 2500 .003 - .008 159
