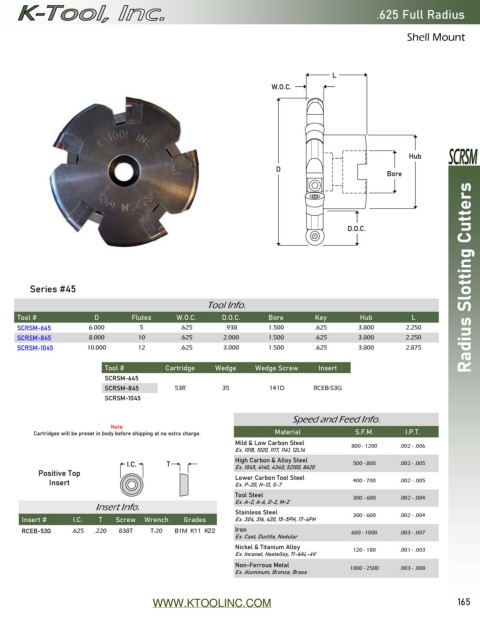

Page 165 - Catalog 15

.625 Full Radius

Shell Mount

L
W.O.C.

Hub
D
Bore

D.O.C.

Series #45 Radius Slotting Cutters

Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub L
SCRSM-645 6.000 5 .625 .938 1.500 .625 3.800 2.250
SCRSM-845 8.000 10 .625 2.000 1.500 .625 3.800 2.250
SCRSM-1045 10.000 12 .625 3.000 1.500 .625 3.800 2.875

Tool # Cartridge Wedge Wedge Screw Insert
SCRSM-645
SCRSM-845 53R 35 141D RCEB-53G
SCRSM-1045

Speed and Feed Info.

Note:
Cartridges will be preset in body before shipping at no extra charge. Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
I.C. T High Carbon & Alloy Steel 500 - 800 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Positive Top Lower Carbon Tool Steel
Insert Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
Insert Info.
Stainless Steel
Insert # I.C. T Screw Wrench Grades Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
RCEB-53G .625 .220 838T T-20 B1M X33 X40 Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .008
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 165
