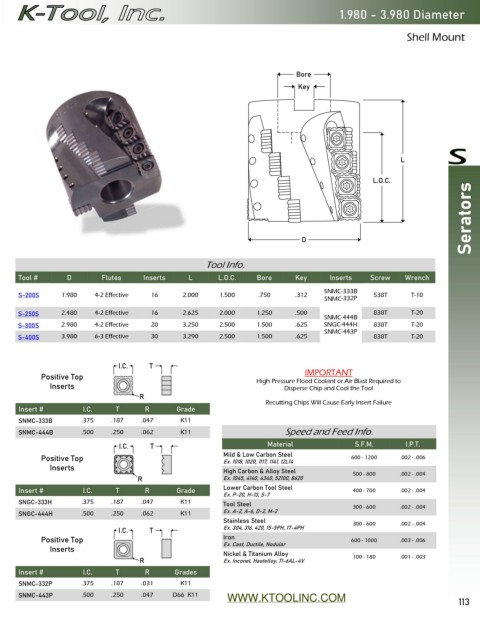

Page 113 - Catalog 15

1.980 - 3.980 Diameter

Shell Mount

Bore
Key

L

L.O.C.
Serators

D

Tool Info.

Tool # D Flutes Inserts L L.O.C. Bore Key Inserts Screw Wrench
SNMC-333B
S-200S 1.980 4-2 Effective 16 2.000 1.500 .750 .312 SNGC-333H 538T T-10
SNMC-332P
S-250S 2.480 4-2 Effective 16 2.625 2.000 1.250 .500 838T T-20
SNMC-444B
S-300S 2.980 4-2 Effective 20 3.250 2.500 1.500 .625 SNGC-444H 838T T-20
SNMC-443P
S-400S 3.980 6-3 Effective 30 3.290 2.500 1.500 .625 838T T-20

I.C. T
Positive Top IMPORTANT
Inserts High Pressure Flood Coolant or Air Blast Required to
Disperse Chip and Cool the Tool
R
Recutting Chips Will Cause Early Insert Failure
Insert # I.C. T R Grade
SNMC-333B .375 .187 .047 X33

SNMC-444B .500 .250 .062 X33 Speed and Feed Info.
I.C. T Material S.F.M. I.P.T.
Positive Top Mild & Low Carbon Steel 600 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
Inserts High Carbon & Alloy Steel
R Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .004
Insert # I.C. T R Grade Lower Carbon Tool Steel 400 - 700 .002 - .004
Ex. P-20, H-13, S-7
SNGC-333H .375 .187 .047 X33 Tool Steel 300 - 600 .002 - .004
SNGC-444H .500 .250 .062 X33 Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .002 - .004
I.C. T Ex. 304, 316, 420, 15-5PH, 17-4PH
Positive Top Iron 600 - 1000 .003 - .006
Inserts Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy
R Ex. Inconel, Hastelloy, TI-6AL-4V 100 - 180 .001 - .003
Insert # I.C. T R Grades
SNMC-332P .375 .187 .031 X33
SNMC-443P .500 .250 .047 C55 X33 WWW.KTOOLINC.COM 113
