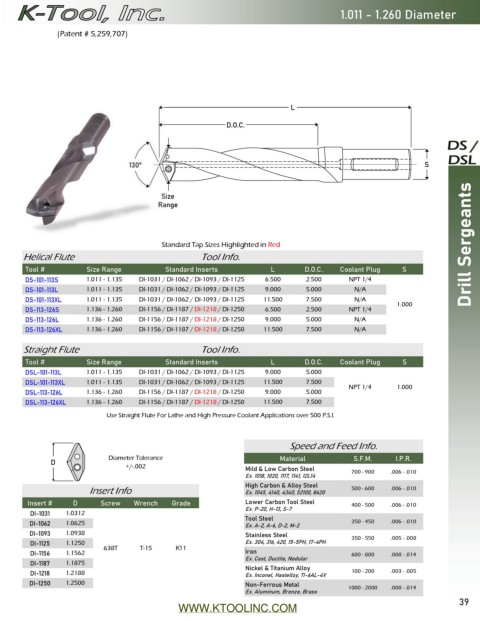

Page 39 - Catalog 15

1.011 - 1.260 Diameter

(Patent # 5,259,707)

L

D.O.C.

130° S

Size
Range

Standard Tap Sizes Highlighted in Red Drill Sergeants
Helical Flute Tool Info.

Tool # Size Range Standard Inserts L D.O.C. Coolant Plug S
DS-101-113S 1.011 - 1.135 DI-1031 / DI-1062 / DI-1093 / DI-1125 6.500 2.500 NPT 1/4
DS-101-113L 1.011 - 1.135 DI-1031 / DI-1062 / DI-1093 / DI-1125 9.000 5.000 N/A
DS-101-113XL 1.011 - 1.135 DI-1031 / DI-1062 / DI-1093 / DI-1125 11.500 7.500 N/A
1.000
DS-113-126S 1.136 - 1.260 DI-1156 / DI-1187 / DI-1218 / DI-1250 6.500 2.500 NPT 1/4
DS-113-126L 1.136 - 1.260 DI-1156 / DI-1187 / DI-1218 / DI-1250 9.000 5.000 N/A
DS-113-126XL 1.136 - 1.260 DI-1156 / DI-1187 / DI-1218 / DI-1250 11.500 7.500 N/A

Straight Flute Tool Info.

Tool # Size Range Standard Inserts L D.O.C. Coolant Plug S
DSL-101-113L 1.011 - 1.135 DI-1031 / DI-1062 / DI-1093 / DI-1125 9.000 5.000
DSL-101-113XL 1.011 - 1.135 DI-1031 / DI-1062 / DI-1093 / DI-1125 11.500 7.500 NPT 1/4 1.000
DSL-113-126L 1.136 - 1.260 DI-1156 / DI-1187 / DI-1218 / DI-1250 9.000 5.000
DSL-113-126XL 1.136 - 1.260 DI-1156 / DI-1187 / DI-1218 / DI-1250 11.500 7.500
Use Straight Flute For Lathe and High Pressure Coolant Applications over 500 P.S.I.

Speed and Feed Info.

Diameter Tolerance Material S.F.M. I.P.R.
D +/-.002 Mild & Low Carbon Steel
Ex. 1018, 1020, 1117, 1141, 12L14 700 - 900 .006 - .010
High Carbon & Alloy Steel
Insert Info Ex. 1045, 4140, 4340, 52100, 8620 500 - 600 .006 - .010
Insert # D Screw Wrench Grade Lower Carbon Tool Steel 400 - 500 .006 - .010
Ex. P-20, H-13, S-7
DI-1031 1.0312 Tool Steel
DI-1062 1.0625 Ex. A-2, A-6, D-2, M-2 350 - 450 .006 - .010
DI-1093 1.0938 Stainless Steel 350 - 550 .005 - .008
DI-1125 1.1250 Ex. 304, 316, 420, 15-5PH, 17-4PH
638T T-15 X33
DI-1156 1.1562 Iron 600 - 800 .008 - .014
Ex. Cast, Ductile, Nodular
DI-1187 1.1875 Nickel & Titanium Alloy
DI-1218 1.2188 Ex. Inconel, Hastelloy, TI-6AL-4V 100 - 200 .003 - .005
DI-1250 1.2500 Non-Ferrous Metal 1000 - 2000 .008 - .014
Ex. Aluminum, Bronze, Brass
39
WWW.KTOOLINC.COM
