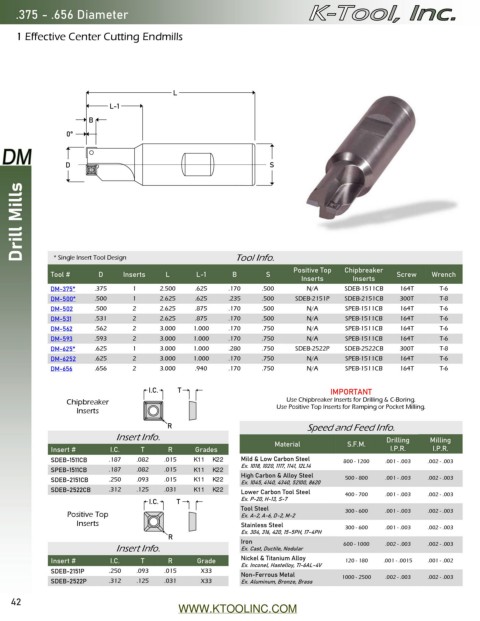

Page 42 - Catalog 15

.375 - .656 Diameter

1 Effective Center Cutting Endmills

L
L-1
B

0°

D S

Drill Mills

Tool Info.
*Single Insert Tool Design
Positive Top Chipbreaker
Tool # D Inserts L L-1 B S Screw Wrench
Inserts Inserts
DM-375* .375 1 2.500 .625 .170 .500 N/A SDEB-1511CB 164T T-6
DM-500* .500 1 2.625 .625 .235 .500 SDEB-2151P SDEB-2151CB 300T T-8
DM-502 .500 2 2.625 .875 .170 .500 N/A SPEB-1511CB 164T T-6
DM-531 .531 2 2.625 .875 .170 .500 N/A SPEB-1511CB 164T T-6
DM-562 .562 2 3.000 1.000 .170 .750 N/A SPEB-1511CB 164T T-6
DM-593 .593 2 3.000 1.000 .170 .750 N/A SPEB-1511CB 164T T-6
DM-625* .625 1 3.000 1.000 .280 .750 SDEB-2522P SDEB-2522CB 300T T-8
DM-6252 .625 2 3.000 1.000 .170 .750 N/A SPEB-1511CB 164T T-6
DM-656 .656 2 3.000 .940 .170 .750 N/A SPEB-1511CB 164T T-6

I.C. T IMPORTANT
Chipbreaker Use Chipbreaker Inserts for Drilling & C-Boring.
Inserts Use Positive Top Inserts for Ramping or Pocket Milling.
R Speed and Feed Info.

Insert Info. Drilling Milling
Material S.F.M.
Insert # I.C. T R Grades I.P.R. I.P.R.
SDEB-1511CB .187 .082 .015 X33 X40 Mild & Low Carbon Steel 800 - 1200 .001 - .003 .002 - .003
SPEB-1511CB .187 .082 .015 X33 X40 Ex. 1018, 1020, 1117, 1141, 12L14
SDEB-2151CB .250 .093 .015 X33 X40 High Carbon & Alloy Steel 500 - 800 .001 - .003 .002 - .003
Ex. 1045, 4140, 4340, 52100, 8620
SDEB-2522CB .312 .125 .031 X33 X40 Lower Carbon Tool Steel 400 - 700 .001 - .003 .002 - .003
I.C. T Ex. P-20, H-13, S-7
Tool Steel 300 - 600 .001 - .003 .002 - .003
Positive Top Ex. A-2, A-6, D-2, M-2
Inserts Stainless Steel 300 - 600 .001 - .003 .002 - .003
Ex. 304, 316, 420, 15-5PH, 17-4PH
R Iron
Insert Info. Ex. Cast, Ductile, Nodular 600 - 1000 .002 - .003 .002 - .003
Insert # I.C. T R Grade Nickel & Titanium Alloy 120 - 180 .001 - .0015 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
SDEB-2151P .250 .093 .015 X33 Non-Ferrous Metal
SDEB-2522P .312 .125 .031 X33 Ex. Aluminum, Bronze, Brass 1000 - 2500 .002 - .003 .002 - .003

42
