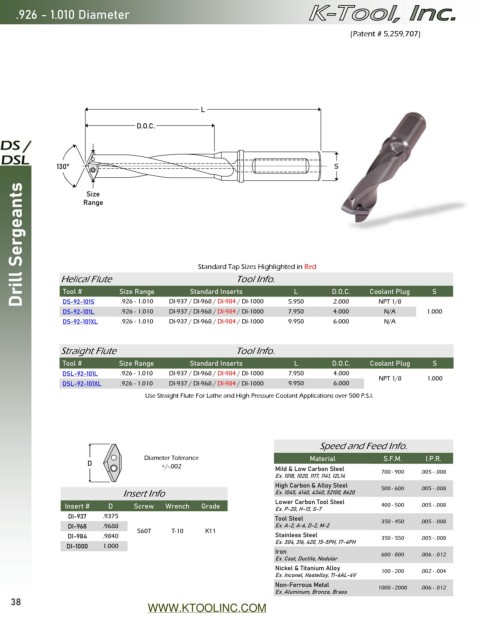

Page 38 - Catalog 15

.926 - 1.010 Diameter

(Patent # 5,259,707)

L
D.O.C.

130° Range S

Drill Sergeants Standard Tap Sizes Highlighted in Red
Size

Size Range

L
Tool #
Standard Inserts
Helical Flute Tool Info. 5.950 D.O.C. Coolant Plug S
DI-937 / DI-968 / DI-984 / DI-1000
.926 - 1.010

2.000
NPT 1/8
DS-92-101S
DS-92-101L .926 - 1.010 DI-937 / DI-968 / DI-984 / DI-1000 7.950 4.000 N/A 1.000
DS-92-101XL .926 - 1.010 DI-937 / DI-968 / DI-984 / DI-1000 9.950 6.000 N/A
Straight Flute Tool Info.
Tool # Size Range Standard Inserts L D.O.C. Coolant Plug S
DSL-92-101L .926 - 1.010 DI-937 / DI-968 / DI-984 / DI-1000 7.950 4.000
NPT 1/8 1.000
DSL-92-101XL .926 - 1.010 DI-937 / DI-968 / DI-984 / DI-1000 9.950 6.000
Use Straight Flute For Lathe and High Pressure Coolant Applications over 500 P.S.I.

Speed and Feed Info.
Diameter Tolerance Material S.F.M. I.P.R.
D +/-.002 Mild & Low Carbon Steel
Ex. 1018, 1020, 1117, 1141, 12L14 700 - 900 .005 - .008
High Carbon & Alloy Steel 500 - 600 .005 - .008
Insert Info Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel
Insert # D Screw Wrench Grade Ex. P-20, H-13, S-7 400 - 500 .005 - .008
DI-937 .9375 Tool Steel
DI-968 .9688 Ex. A-2, A-6, D-2, M-2 350 - 450 .005 - .008
560T T-10 X33
DI-984 .9840 Stainless Steel 350 - 550 .005 - .008
Ex. 304, 316, 420, 15-5PH, 17-4PH
DI-1000 1.000
Iron 600 - 800 .006 - .012
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 100 - 200 .002 - .004
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2000 .006 - .012
Ex. Aluminum, Bronze, Brass
