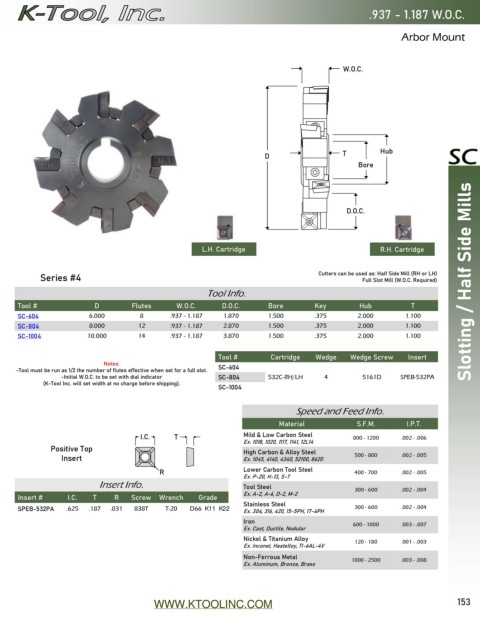

Page 153 - Catalog 15

.937 - 1.187 W.O.C.

Arbor Mount

W.O.C.

D T Hub
Bore

D.O.C.

L.H. Cartridge R.H. Cartridge

Cutters can be used as: Half Side Mill (RH or LH)
Series #4 Full Slot Mill (W.O.C. Required) Slotting / Half Side Mills
Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub T
SC-604 6.000 8 .937 - 1.187 1.870 1.500 .375 2.000 1.100
SC-804 8.000 12 .937 - 1.187 2.870 1.500 .375 2.000 1.100
SC-1004 10.000 14 .937 - 1.187 3.870 1.500 .375 2.000 1.100

Tool # Cartridge Wedge Wedge Screw Insert
Notes:
-Tool must be run as 1/2 the number of flutes effective when set for a full slot. SC-604
-Initial W.O.C. to be set with dial indicator SC-804 532C-RH/LH 4 5161D SPEB-532PA
(K-Tool Inc. will set width at no charge before shipping).
SC-1004

Speed and Feed Info.

Material S.F.M. I.P.T.
I.C. T Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
Positive Top High Carbon & Alloy Steel
Insert Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .005

R Lower Carbon Tool Steel 400 - 700 .002 - .005
Ex. P-20, H-13, S-7
Insert Info. Tool Steel 300 - 600 .002 - .004
Insert # I.C. T R Screw Wrench Grade Ex. A-2, A-6, D-2, M-2
Stainless Steel
SPEB-532PA .625 .187 .031 838T T-20 C55 X33 X40 Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .008
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 153
