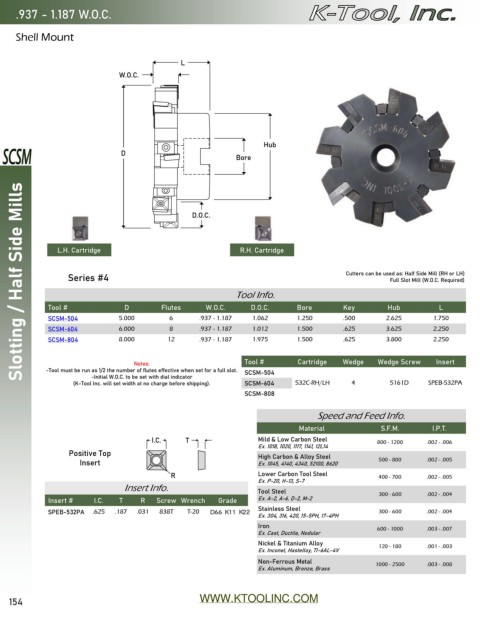

Page 154 - Catalog 15

.937 - 1.187 W.O.C.

Shell Mount

L
W.O.C.

Hub
D
Bore

Slotting / Half Side Mills

C
.
D.O .

L.H. Cartridge R.H. Cartridge

Series #4 Cutters can be used as: Half Side Mill (RH or LH)
Full Slot Mill (W.O.C. Required)
Tool Info.
Tool # D Flutes W.O.C. D.O.C. Bore Key Hub L
SCSM-504 5.000 6 .937 - 1.187 1.062 1.250 .500 2.625 1.750
SCSM-604 6.000 8 .937 - 1.187 1.012 1.500 .625 3.625 2.250
SCSM-804 8.000 12 .937 - 1.187 1.975 1.500 .625 3.800 2.250

Notes: Tool # Cartridge Wedge Wedge Screw Insert
-Tool must be run as 1/2 the number of flutes effective when set for a full slot. SCSM-504
-Initial W.O.C. to be set with dial indicator
(K-Tool Inc. will set width at no charge before shipping). SCSM-604 532C-RH/LH 4 5161D SPEB-532PA
SCSM-808

Speed and Feed Info.
Material S.F.M. I.P.T.
I.C. T Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
Positive Top High Carbon & Alloy Steel
Insert Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .005
R Lower Carbon Tool Steel 400 - 700 .002 - .005
Ex. P-20, H-13, S-7
Insert Info. Tool Steel
Insert # I.C. T R Screw Wrench Grade Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .004
SPEB-532PA .625 .187 .031 838T T-20 C55 X33 X40 Stainless Steel 300 - 600 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .008
Ex. Aluminum, Bronze, Brass

154 WWW.KTOOLINC.COM
