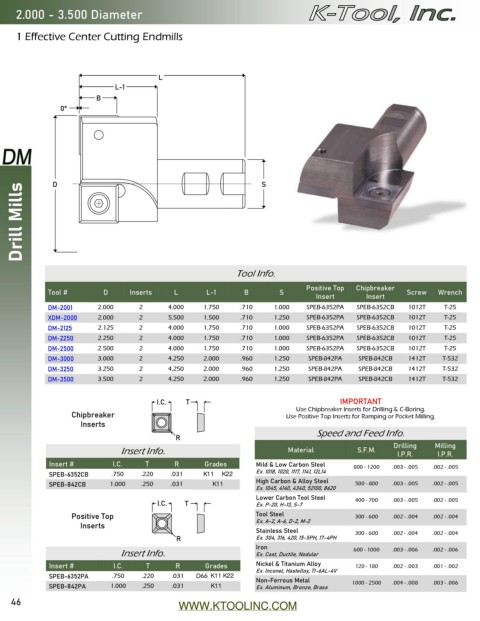

Page 46 - Catalog 15

2.000 - 3.500 Diameter

1 Effective Center Cutting Endmills

L
L-1
B
0°

Drill Mills D S

Tool Info.
Positive Top Chipbreaker
Tool # D Inserts L L-1 B S Screw Wrench
Insert Insert
DM-2001 2.000 2 4.000 1.750 .710 1.000 SPEB-6352PA SPEB-6352CB 1012T T-25
XDM-2000 2.000 2 5.500 1.500 .710 1.250 SPEB-6352PA SPEB-6352CB 1012T T-25
DM-2125 2.125 2 4.000 1.750 .710 1.000 SPEB-6352PA SPEB-6352CB 1012T T-25
DM-2250 2.250 2 4.000 1.750 .710 1.000 SPEB-6352PA SPEB-6352CB 1012T T-25
DM-2500 2.500 2 4.000 1.750 .710 1.000 SPEB-6352PA SPEB-6352CB 1012T T-25
DM-3000 3.000 2 4.250 2.000 .960 1.250 SPEB-842PA SPEB-842CB 1412T T-532
DM-3250 3.250 2 4.250 2.000 .960 1.250 SPEB-842PA SPEB-842CB 1412T T-532
DM-3500 3.500 2 4.250 2.000 .960 1.250 SPEB-842PA SPEB-842CB 1412T T-532

I.C. T IMPORTANT
Use Chipbreaker Inserts for Drilling & C-Boring.
Chipbreaker Use Positive Top Inserts for Ramping or Pocket Milling.
Inserts
Speed and Feed Info.

R
Drilling Milling
Insert Info. Material S.F.M. I.P.R. I.P.R.
Insert # I.C. T R Grades Mild & Low Carbon Steel 800 - 1200 .003 - .005 .002 - .005
SPEB-6352CB .750 .220 .031 X33 X40 Ex. 1018, 1020, 1117, 1141, 12L14
SPEB-842CB 1.000 .250 .031 X33 X40 High Carbon & Alloy Steel 500 - 800 .003 - .005 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel 400 - 700 .003 - .005 .002 - .005
I.C. T Ex. P-20, H-13, S-7
Positive Top Tool Steel 300 - 600 .002 - .004 .002 - .004
Inserts Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .002 - .004 .002 - .004
R Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron
Insert Info. Ex. Cast, Ductile, Nodular 600 - 1000 .003 - .006 .002 - .006
Insert # I.C. T R Grades Nickel & Titanium Alloy 120 - 180 .002 - .003 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
SPEB-6352PA .750 .220 .031 C55 X33 X40 Non-Ferrous Metal
SPEB-842PA 1.000 .250 .031 X33 Ex. Aluminum, Bronze, Brass 1000 - 2500 .004 - .008 .003 - .006
