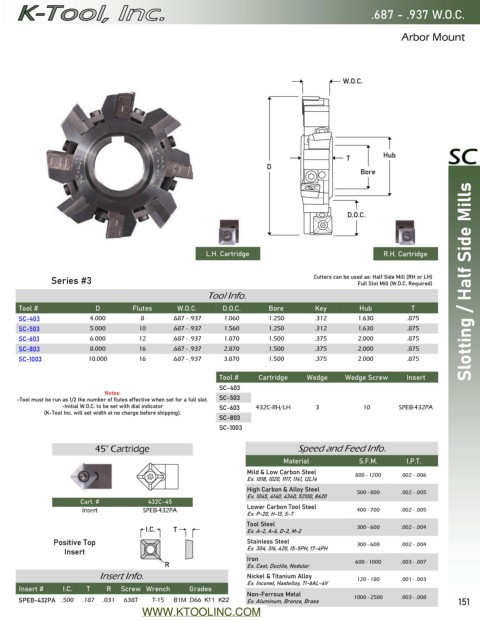

Page 151 - Catalog 15

.687 - .937 W.O.C.

Arbor Mount

W.O.C.

T Hub
D
Bore

D.O.C.

L.H. Cartridge R.H. Cartridge

Cutters can be used as: Half Side Mill (RH or LH)
Series #3 Full Slot Mill (W.O.C. Required) Slotting / Half Side Mills
Tool Info.

Tool # D Flutes W.O.C. D.O.C. Bore Key Hub T
SC-403 4.000 8 .687 - .937 1.060 1.250 .312 1.630 .875
SC-503 5.000 10 .687 - .937 1.560 1.250 .312 1.630 .875
SC-603 6.000 12 .687 - .937 1.870 1.500 .375 2.000 .875
SC-803 8.000 16 .687 - .937 2.870 1.500 .375 2.000 .875
SC-1003 10.000 16 .687 - .937 3.870 1.500 .375 2.000 .875

Tool # Cartridge Wedge Wedge Screw Insert
SC-403
Notes:
-Tool must be run as 1/2 the number of flutes effective when set for a full slot. SC-503
-Initial W.O.C. to be set with dial indicator SC-603 432C-RH/LH 3 10 SPEB-432PA
(K-Tool Inc. will set width at no charge before shipping).
SC-803
SC-1003

45° Cartridge Speed and Feed Info.
Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel 500 - 800 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Cart. # 432C-45 Lower Carbon Tool Steel
Insert SPEB-432PA 400 - 700 .002 - .005
Ex. P-20, H-13, S-7
Tool Steel
I.C. T Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .004
Positive Top Stainless Steel 300 - 600 .002 - .004
Insert Ex. 304, 316, 420, 15-5PH, 17-4PH
R Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Insert Info. Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Insert # I.C. T R Screw Wrench Grades
Non-Ferrous Metal
SPEB-432PA .500 .187 .031 638T T-15 B1M C55 X33 X40 Ex. Aluminum, Bronze, Brass 1000 - 2500 .003 - .008 151
