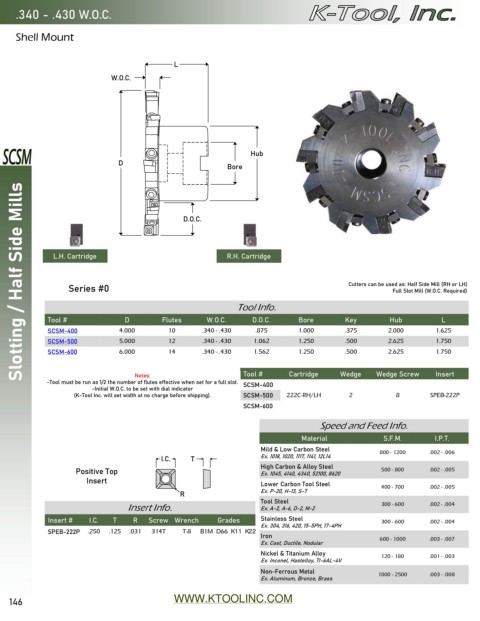

Page 146 - Catalog 15

.340 - .430 W.O.C.

Shell Mount

L
W.O.C.

Hub
D Bore

Slotting / Half Side Mills

D.O.C.

L.H. Cartridge R.H. Cartridge

Series #0 Cutters can be used as: Half Side Mill (RH or LH)
Full Slot Mill (W.O.C. Required)
Tool Info.
Tool # D Flutes W.O.C. D.O.C. Bore Key Hub L
SCSM-400 4.000 10 .340 - .430 .875 1.000 .375 2.000 1.625
SCSM-500 5.000 12 .340 - .430 1.062 1.250 .500 2.625 1.750
SCSM-600 6.000 14 .340 - .430 1.562 1.250 .500 2.625 1.750

Notes: Tool # Cartridge Wedge Wedge Screw Insert
-Tool must be run as 1/2 the number of flutes effective when set for a full slot. SCSM-400
-Initial W.O.C. to be set with dial indicator
(K-Tool Inc. will set width at no charge before shipping). SCSM-500 222C-RH/LH 2 8 SPEB-222P
SCSM-600

Speed and Feed Info.
Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
I.C. T Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel
Positive Top Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .005
Insert Lower Carbon Tool Steel
R Ex. P-20, H-13, S-7 400 - 700 .002 - .005
Tool Steel
Insert Info. Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .004
Insert # I.C. T R Screw Wrench Grades Stainless Steel 300 - 600 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-222P .250 .125 .031 314T T-8 B1M C55 X33 X40
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .008
Ex. Aluminum, Bronze, Brass

146 WWW.KTOOLINC.COM
