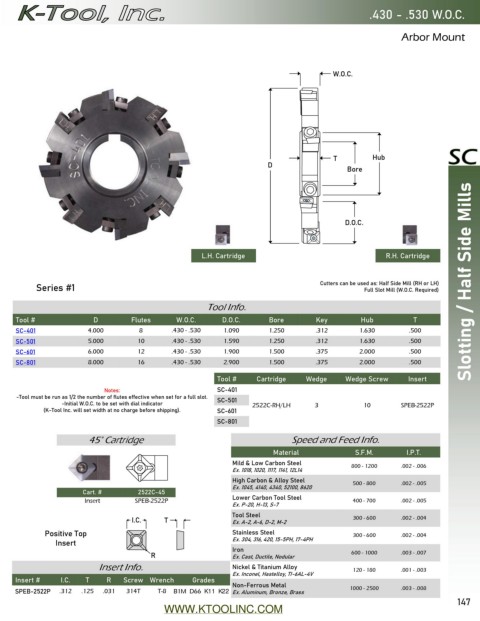

Page 147 - Catalog 15

.430 - .530 W.O.C.

Arbor Mount

W.O.C.

T Hub
D
Bore

D.O.C.

L.H. Cartridge R.H. Cartridge

Series #1 Cutters can be used as: Half Side Mill (RH or LH) Slotting / Half Side Mills
Full Slot Mill (W.O.C. Required)
Tool Info.
Tool # D Flutes W.O.C. D.O.C. Bore Key Hub T
SC-401 4.000 8 .430 - .530 1.090 1.250 .312 1.630 .500
SC-501 5.000 10 .430 - .530 1.590 1.250 .312 1.630 .500
SC-601 6.000 12 .430 - .530 1.900 1.500 .375 2.000 .500
SC-801 8.000 16 .430 - .530 2.900 1.500 .375 2.000 .500

Tool # Cartridge Wedge Wedge Screw Insert
Notes: SC-401
-Tool must be run as 1/2 the number of flutes effective when set for a full slot. SC-501
-Initial W.O.C. to be set with dial indicator 2522C-RH/LH 3 10 SPEB-2522P
(K-Tool Inc. will set width at no charge before shipping). SC-601
SC-801
45° Cartridge Speed and Feed Info.

Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel 500 - 800 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Cart. # 2522C-45
Insert SPEB-2522P Lower Carbon Tool Steel 400 - 700 .002 - .005
Ex. P-20, H-13, S-7
Tool Steel
I.C. T Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .004
Positive Top Stainless Steel 300 - 600 .002 - .004
Insert Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron
R Ex. Cast, Ductile, Nodular 600 - 1000 .003 - .007
Insert Info. Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Insert # I.C. T R Screw Wrench Grades
Non-Ferrous Metal
SPEB-2522P .312 .125 .031 314T T-8 B1M C55 X33 X40 Ex. Aluminum, Bronze, Brass 1000 - 2500 .003 - .008
147
WWW.KTOOLINC.COM
