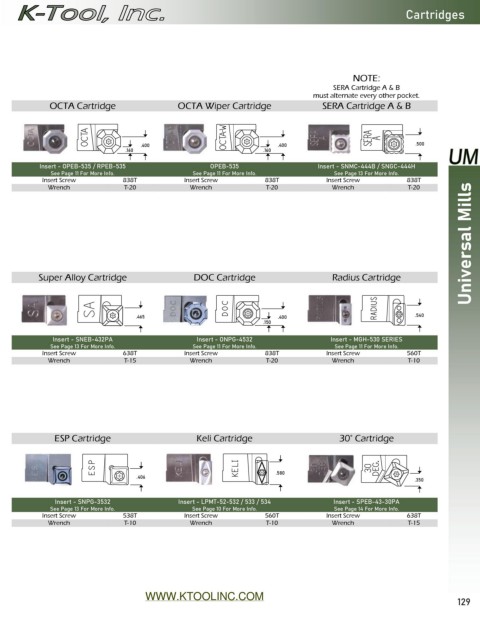

Page 129 - Catalog 15

Cartridges

NOTE:
SERA Cartridge A & B
must alternate every other pocket.
OCTA Cartridge OCTA Wiper Cartridge SERA Cartridge A & B

.400 .400 .500
.160 .160
Insert - OPEB-535 / RPEB-535 OPEB-535 Insert - SNMC-444B / SNGC-444H
See Page 11 For More Info. See Page 11 For More Info. See Page 13 For More Info.
Insert Screw 838T Insert Screw 838T Insert Screw 838T
Universal Mills
Wrench T-20 Wrench T-20 Wrench T-20

Super Alloy Cartridge DOC Cartridge Radius Cartridge

.465 .400 .540
.150

Insert - SNEB-432PA Insert - ONPG-4532 Insert - MGH-530 SERIES
See Page 13 For More Info. See Page 11 For More Info. See Page 11 For More Info.
Insert Screw 638T Insert Screw 838T Insert Screw 560T
Wrench T-15 Wrench T-20 Wrench T-10

ESP Cartridge Keli Cartridge 30° Cartridge

.580
.406
.350
Insert - SNPG-3532 Insert - LPMT-52-532 / 533 / 534 Insert - SPEB-43-30PA
See Page 13 For More Info. See Page 10 For More Info. See Page 14 For More Info.
Insert Screw 538T Insert Screw 560T Insert Screw 638T
Wrench T-10 Wrench T-10 Wrench T-15

WWW.KTOOLINC.COM 129
