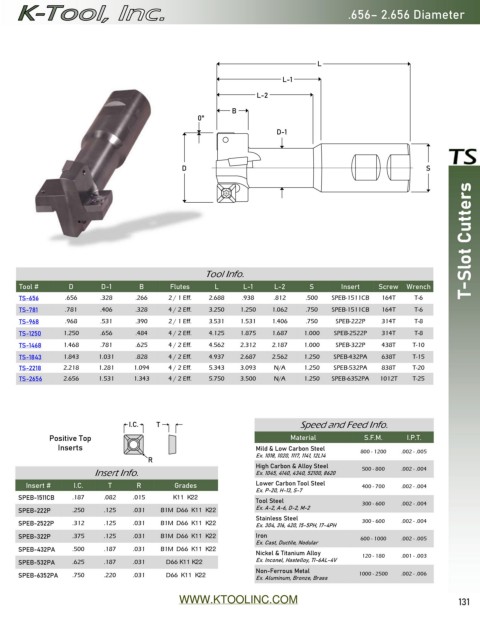

Page 131 - Catalog 15

.656– 2.656 Diameter

L

L-1
L-2

B
0°
D-1

D S

T-Slot Cutters

Tool Info.

Tool # D D-1 B Flutes L L-1 L-2 S Insert Screw Wrench
TS-656 .656 .328 .266 2 / 1 Eff. 2.688 .938 .812 .500 SPEB-1511CB 164T T-6
TS-781 .781 .406 .328 4 / 2 Eff. 3.250 1.250 1.062 .750 SPEB-1511CB 164T T-6
TS-968 .968 .531 .390 2 / 1 Eff. 3.531 1.531 1.406 .750 SPEB-222P 314T T-8
TS-1250 1.250 .656 .484 4 / 2 Eff. 4.125 1.875 1.687 1.000 SPEB-2522P 314T T-8
TS-1468 1.468 .781 .625 4 / 2 Eff. 4.562 2.312 2.187 1.000 SPEB-322P 438T T-10
TS-1843 1.843 1.031 .828 4 / 2 Eff. 4.937 2.687 2.562 1.250 SPEB-432PA 638T T-15
TS-2218 2.218 1.281 1.094 4 / 2 Eff. 5.343 3.093 N/A 1.250 SPEB-532PA 838T T-20
TS-2656 2.656 1.531 1.343 4 / 2 Eff. 5.750 3.500 N/A 1.250 SPEB-6352PA 1012T T-25

I.C. T Speed and Feed Info.
Positive Top Material S.F.M. I.P.T.
Inserts Mild & Low Carbon Steel 800 - 1200 .002 - .005
Ex. 1018, 1020, 1117, 1141, 12L14
R
High Carbon & Alloy Steel
Insert Info. Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .004
Insert # I.C. T R Grades Lower Carbon Tool Steel 400 - 700 .002 - .004
Ex. P-20, H-13, S-7
SPEB-1511CB .187 .082 .015 X33 X40 Tool Steel 300 - 600 .002 - .004
SPEB-222P .250 .125 .031 B1M C55 X33 X40 Ex. A-2, A-6, D-2, M-2
Stainless Steel
SPEB-2522P .312 .125 .031 B1M C55 X33 X40 Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
SPEB-322P .375 .125 .031 B1M C55 X33 X40 Iron 600 - 1000 .002 - .005
Ex. Cast, Ductile, Nodular
SPEB-432PA .500 .187 .031 B1M C55 X33 X40
Nickel & Titanium Alloy 120 - 180 .001 - .003
SPEB-532PA .625 .187 .031 C55 X33 X40 Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal
SPEB-6352PA .750 .220 .031 C55 X33 X40 Ex. Aluminum, Bronze, Brass 1000 - 2500 .002 - .006
