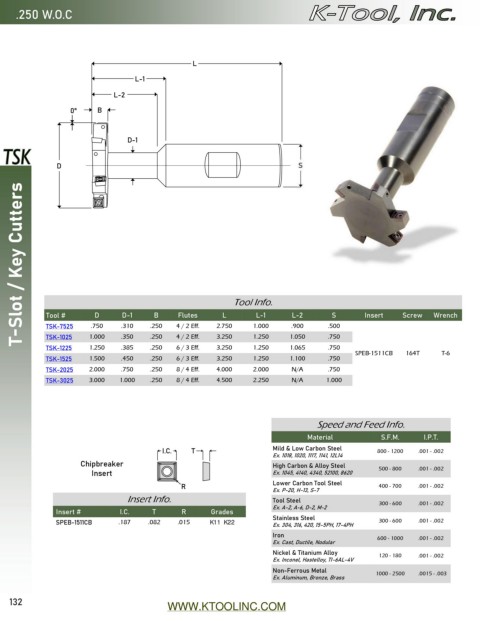

Page 132 - Catalog 15

.250 W.O.C

L

L-1
L-2

0° B

D-1

D S

T-Slot / Key Cutters

Tool Info.

Tool # D D-1 B Flutes L L-1 L-2 S Insert Screw Wrench
TSK-7525 .750 .310 .250 4 / 2 Eff. 2.750 1.000 .900 .500
TSK-1025 1.000 .350 .250 4 / 2 Eff. 3.250 1.250 1.050 .750
TSK-1225 1.250 .385 .250 6 / 3 Eff. 3.250 1.250 1.065 .750
SPEB-1511CB 164T T-6
TSK-1525 1.500 .450 .250 6 / 3 Eff. 3.250 1.250 1.100 .750
TSK-2025 2.000 .750 .250 8 / 4 Eff. 4.000 2.000 N/A .750
TSK-3025 3.000 1.000 .250 8 / 4 Eff. 4.500 2.250 N/A 1.000

Speed and Feed Info.

Material S.F.M. I.P.T.
I.C. T Mild & Low Carbon Steel 800 - 1200 .002 - .003
Ex. 1018, 1020, 1117, 1141, 12L14
Chipbreaker High Carbon & Alloy Steel
Insert Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .003
R Lower Carbon Tool Steel 400 - 700 .002 - .003
Ex. P-20, H-13, S-7
Insert Info. Tool Steel
Ex. A-2, A-6, D-2, M-2 300 - 600 .002 - .003
Insert # I.C. T R Grades
Stainless Steel
SPEB-1511CB .187 .082 .015 X33 X40 Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .002 - .004
Iron 600 - 1000 .002 - .003
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .002 - .004
Ex. Aluminum, Bronze, Brass

132
WWW.KTOOLINC.COM
