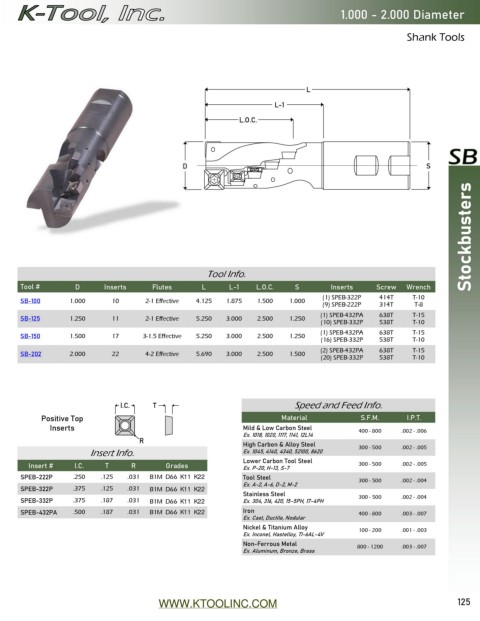

Page 125 - Catalog 15

1.000 - 2.000 Diameter

Shank Tools

L
L-1
L.O.C.

D S

Stockbusters

Tool Info.

Tool # D Inserts Flutes L L-1 L.O.C. S Inserts Screw Wrench
(1) SPEB-322P 438T T-10
SB-100 1.000 10 2-1 Effective 4.125 1.875 1.500 1.000
(9) SPEB-222P 314T T-8
(1) SPEB-432PA 638T T-15
SB-125 1.250 11 2-1 Effective 5.250 3.000 2.500 1.250 (10) SPEB-332P 538T T-10
(1) SPEB-432PA 638T T-15
SB-150 1.500 17 3-1.5 Effective 5.250 3.000 2.500 1.250
(16) SPEB-332P 538T T-10
SB-202 2.000 22 4-2 Effective 5.690 3.000 2.500 1.250 (2) SPEB-432PA 638T T-15
(20) SPEB-332P 538T T-10

I.C. T Speed and Feed Info.
Positive Top Material S.F.M. I.P.T.
Inserts Mild & Low Carbon Steel 400 - 800 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
R High Carbon & Alloy Steel
Insert Info. Ex. 1045, 4140, 4340, 52100, 8620 300 - 500 .002 - .005
Lower Carbon Tool Steel
Insert # I.C. T R Grades Ex. P-20, H-13, S-7 300 - 500 .002 - .005
SPEB-222P .250 .125 .031 B1M C55 X33 X40 Tool Steel 300 - 500 .002 - .004
Ex. A-2, A-6, D-2, M-2
SPEB-322P .375 .125 .031 B1M C55 X33 X40
Stainless Steel 300 - 500 .002 - .004
SPEB-332P .375 .187 .031 B1M C55 X33 X40 Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-432PA .500 .187 .031 B1M C55 X33 X40 Iron 400 - 800 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 100 - 200 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 800 - 1200 .003 - .007
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 125
