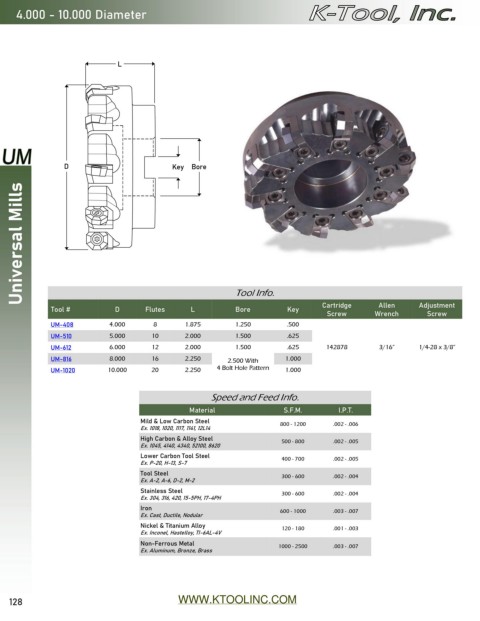

Page 128 - Catalog 15

4.000 - 10.000 Diameter

L

D Key Bore

Universal Mills

Bore
Tool # D Flutes L Tool Info. Key Cartridge Allen Adjustment
Screw Wrench Screw
UM-408 4.000 8 1.875 1.250 .500
UM-510 5.000 10 2.000 1.500 .625
UM-612 6.000 12 2.000 1.500 .625 142878 3/16” 1/4-28 x 3/8”
UM-816 8.000 16 2.250 2.500 With 1.000
UM-1020 10.000 20 2.250 4 Bolt Hole Pattern 1.000

Speed and Feed Info.

Material S.F.M. I.P.T.
Mild & Low Carbon Steel 800 - 1200 .002 - .006
Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel 500 - 800 .002 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel 400 - 700 .002 - .005
Ex. P-20, H-13, S-7
Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .003 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .007
Ex. Aluminum, Bronze, Brass
