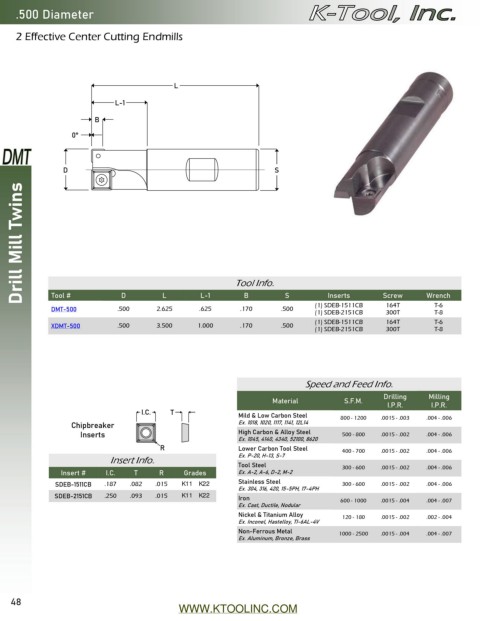

Page 48 - Catalog 15

.500 Diameter

2 Effective Center Cutting Endmills

L

L-1
B

0°

D S

Drill Mill Twins

D
S
Inserts
B
L
L-1
T-6
164T
DMT-500
.170
Tool # .500 2.625 .625 Tool Info. .500 (1) SDEB-1511CB Screw Wrench
(1) SDEB-2151CB 300T T-8
(1) SDEB-1511CB 164T T-6
XDMT-500 .500 3.500 1.000 .170 .500 (1) SDEB-2151CB 300T T-8

Speed and Feed Info.
Drilling Milling
Material S.F.M. I.P.R. I.P.R.
I.C. T Mild & Low Carbon Steel 800 - 1200 .0015 - .003 .004 - .006
Chipbreaker Ex. 1018, 1020, 1117, 1141, 12L14
Inserts High Carbon & Alloy Steel 500 - 800 .0015 - .002 .004 - .006
Ex. 1045, 4140, 4340, 52100, 8620
R Lower Carbon Tool Steel 400 - 700 .0015 - .002 .004 - .006
Insert Info. Ex. P-20, H-13, S-7
Tool Steel 300 - 600 .0015 - .002 .004 - .006
Insert # I.C. T R Grades Ex. A-2, A-6, D-2, M-2
SDEB-1511CB .187 .082 .015 X33 X40 Stainless Steel 300 - 600 .0015 - .002 .004 - .006
Ex. 304, 316, 420, 15-5PH, 17-4PH
SDEB-2151CB .250 .093 .015 X33 X40 Iron 600 - 1000 .0015 - .004 .004 - .007
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .0015 - .002 .002 - .004
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .0015 - .004 .004 - .007
Ex. Aluminum, Bronze, Brass
