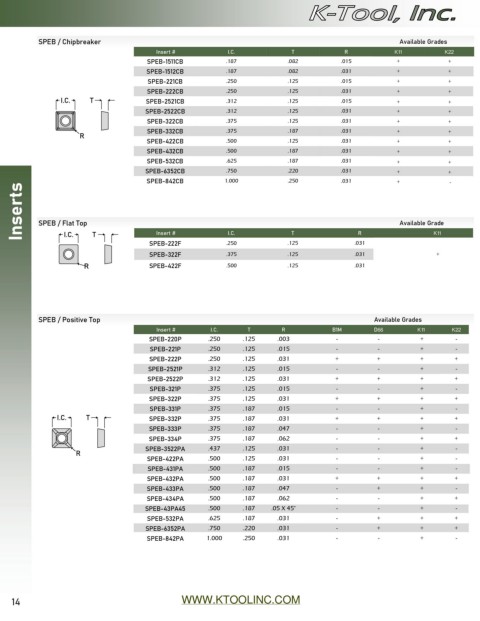

Page 14 - Catalog 15
P. 14

SPEB / Chipbreaker                                                                          Available Grades
                                         Insert #          I.C.            T             R            X33         X40
                                      SPEB-1511CB          .187           .082          .015
                                      SPEB-1512CB          .187           .082          .031
                                       SPEB-221CB          .250           .125          .015
                                      SPEB-222CB           .250           .125          .031
                I.C.    T             SPEB-2521CB          .312           .125          .015
                                      SPEB-2522CB          .312           .125          .031
                                      SPEB-322CB           .375           .125          .031          +            +
                                      SPEB-332CB           .375           .187          .031
                     R
                                      SPEB-422CB           .500           .125          .031
                                      SPEB-432CB           .500           .187          .031
                                      SPEB-532CB           .625           .187          .031
                                      SPEB-6352CB          .750           .220          .031
                                      SPEB-842CB          1.000           .250          .031
      Inserts  SPEB / Flat Top   T     SPEB-222F           .250           .125          .031         A1M          X33

                                                                                                       Available Grades
                                         Insert #
                                                                           T
                                                           I.C.
                 I.C.
                                                                                         R
                       R               SPEB-322F           .375           .125          .031          +            +
                                       SPEB-422F
                                                                          .125
                                                           .500
                                                                                        .031
           SPEB / Positive Top - 30° Lead                                                              Available Grade
                 I.C.    T               Insert #            I.C.                   T                       X33

                                     SPEB-43-30PA           .500                   .187                      +
            30°



           SPEB / Positive Top                                                                Available Grades
                                         Insert #      I.C.     T        R       A1M      B1M      C55      X33     X40
                                       SPEB-220P      .250     .125     .003      -        -        -       +        -
                                       SPEB-221P      .250     .125     .015      -        -        -       +        -
                                       SPEB-222P      .250     .125     .031      +        +       +        +        +
                                       SPEB-2521P     .312     .125     .015      -        -        -       +        -
                                       SPEB-2522P     .312     .125     .031      +        +       +        +        +
                                       SPEB-321P      .375     .125     .015      -        -        -       +        -
                                       SPEB-322P      .375     .125     .031      +        +       +        +        +
                                       SPEB-331P      .375     .187     .015      -        -        -       +        -
               I.C.    T               SPEB-332P      .375     .187     .031      +        +       +        +        +
                                       SPEB-333P      .375     .187     .047      +        -        -       +        -
                                       SPEB-334P      .375     .187     .062      -        -        -       +        +
                                      SPEB-3522PA     .437     .125     .031      -        -        -       +        -
                    R
                                      SPEB-422PA      .500     .125     .031      -        -        -       +        -
                                       SPEB-431PA     .500     .187     .015      -        -        -       +        -
                                      SPEB-432PA      .500     .187     .031      +        +       +        +        +
                                      SPEB-433PA      .500     .187     .047      +        -       +        +        -
                                      SPEB-434PA      .500     .187     .062      -        -        -       +        +
                                      SPEB-43PA45     .500     .187   .05 X 45°   -        -        -       +        -
                                      SPEB-532PA      .625     .187     .031      -        -       +        +        +
                                      SPEB-6352PA     .750     .220     .031      -        -       +        +        +
                                      SPEB-842PA      1.000    .250     .031      -        -        -       +        -




    14                                         WWW.KTOOLINC.COM
