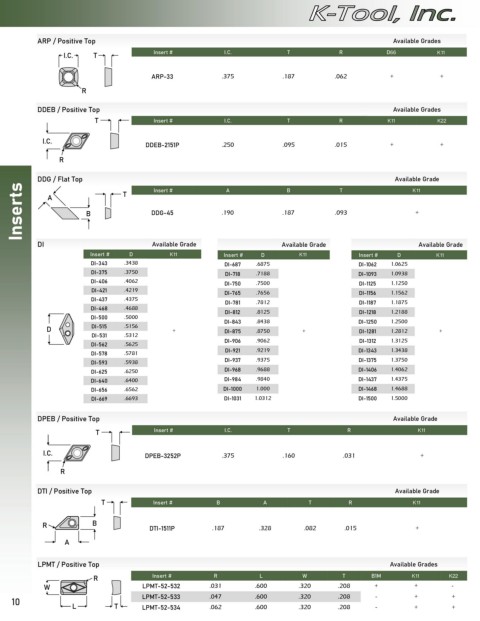

Page 10 - Catalog 15

ARP / Positive Top Available Grades
I.C. T Insert # I.C. T R C55 X33

ARP-33 .375 .187 .062 + +
R

DDEB / Positive Top Available Grades
T Insert # I.C. T R X33 X40

I.C.
DDEB-2151P .250 .095 .015 + +
R

DDG / Flat Top T Insert # A B T Available Grade
Inserts A B DDG-45 .190 .187 .093 +
X33

DI Available Grade Available Grade Available Grade
Insert # D X33 Insert # D X33 Insert # D X33
DI-343 .3438 DI-687 .6875 DI-1062 1.0625
DI-375 .3750 DI-718 .7188 DI-1093 1.0938
DI-406 .4062 DI-750 .7500 DI-1125 1.1250
DI-421 .4219 DI-765 .7656 DI-1156 1.1562
DI-437 .4375
DI-781 .7812 DI-1187 1.1875
DI-468 .4688
DI-812 .8125 DI-1218 1.2188
DI-500 .5000
DI-843 .8438 DI-1250 1.2500
D DI-515 .5156 + DI-875 .8750 + DI-1281 1.2812 +
DI-531 .5312
DI-906 .9062 DI-1312 1.3125
DI-562 .5625
DI-921 .9219 DI-1343 1.3438
DI-578 .5781
DI-593 .5938 DI-937 .9375 DI-1375 1.3750
DI-625 .6250 DI-968 .9688 DI-1406 1.4062
DI-640 .6400 DI-984 .9840 DI-1437 1.4375
DI-656 .6562 DI-1000 1.000 DI-1468 1.4688
DI-669 .6693 DI-1031 1.0312 DI-1500 1.5000

DPEB / Positive Top Available Grades
T Insert # I.C. T R X33 X40

I.C. DPEB-3252P .375 .160 .031 + -
R

DTI / Positive Top Available Grade
T Insert # B A T R X33

R B DTI-1511P .187 .328 .082 .015 +

A

LPMT / Positive Top Available Grades

R Insert # R L W T B1M X33 X40
W LPMT-52-532 .031 .600 .320 .208 + + +
10 LPMT-52-533 .047 .600 .320 .208 - + +
L T LPMT-52-534 .062 .600 .320 .208 - + +
