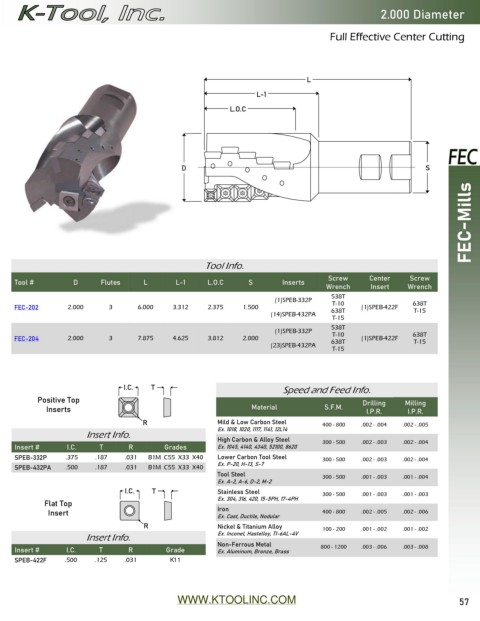

Page 57 - Catalog 15

2.000 Diameter

Full Effective Center Cutting

L
L-1

L.O.C

D S

FEC-Mills

Tool Info.
Screw Center Screw
Tool # D Flutes L L-1 L.O.C S Inserts
Wrench Insert Wrench
538T
(1)SPEB-332P
FEC-202 2.000 3 6.000 3.312 2.375 1.500 T-10 (1)SPEB-422F 638T
(14)SPEB-432PA 638T T-15
T-15
538T
(1)SPEB-332P T-10 638T
FEC-204 2.000 3 7.875 4.625 3.812 2.000 638T (1)SPEB-422F T-15
(23)SPEB-432PA
T-15

I.C. T Speed and Feed Info.

Positive Top Drilling Milling
Inserts Material S.F.M. I.P.R. I.P.R.

R Mild & Low Carbon Steel 400 - 800 .002 - .004 .002 - .005
Ex. 1018, 1020, 1117, 1141, 12L14
Insert Info.
High Carbon & Alloy Steel 300 - 500 .002 - .003 .002 - .004
Insert # I.C. T R Grades Ex. 1045, 4140, 4340, 52100, 8620
SPEB-332P .375 .187 .031 B1M C55 X33 X40 Lower Carbon Tool Steel 300 - 500 .002 - .003 .002 - .004
SPEB-432PA .500 .187 .031 B1M C55 X33 X40 Ex. P-20, H-13, S-7
Tool Steel 300 - 500 .001 - .003 .001 - .004
Ex. A-2, A-6, D-2, M-2
I.C. T Stainless Steel 300 - 500 .001 - .003 .001 - .003
Ex. 304, 316, 420, 15-5PH, 17-4PH
Flat Top
Insert Iron 400 - 800 .002 - .005 .002 - .006
Ex. Cast, Ductile, Nodular
R Nickel & Titanium Alloy 100 - 200 .001 - .002 .001 - .002
Insert Info. Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal
Insert # I.C. T R Grade Ex. Aluminum, Bronze, Brass 800 - 1200 .003 - .006 .003 - .008
SPEB-422F .500 .125 .031 K11

WWW.KTOOLINC.COM 57
