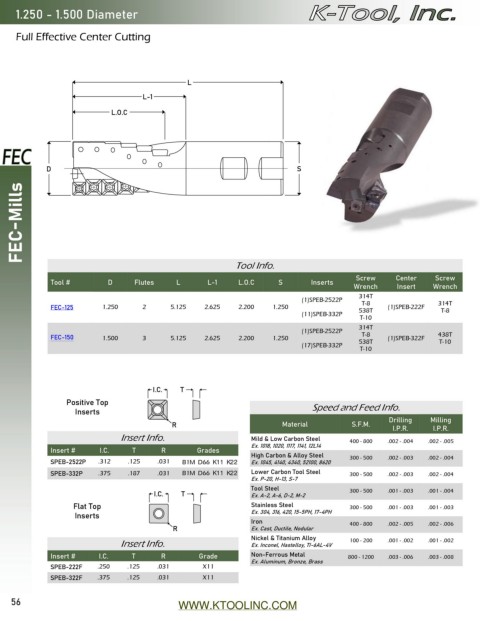

Page 56 - Catalog 15

1.250 - 1.500 Diameter

Full Effective Center Cutting

L

L-1
L.O.C

D S

FEC-Mills

Tool Info.
Screw Center Screw
Tool # D Flutes L L-1 L.O.C S Inserts
Wrench Insert Wrench
314T
(1)SPEB-2522P T-8 314T
FEC-125 1.250 2 5.125 2.625 2.200 1.250 (1)SPEB-222F
(11)SPEB-332P 538T T-8
T-10
314T
(1)SPEB-2522P
FEC-150 1.500 3 5.125 2.625 2.200 1.250 T-8 (1)SPEB-322F 438T
(17)SPEB-332P 538T T-10
T-10

I.C. T
Positive Top

Inserts Speed and Feed Info.
Drilling Milling
R Material S.F.M.
I.P.R. I.P.R.
Insert Info. Mild & Low Carbon Steel 400 - 800 .002 - .004 .002 - .005
Ex. 1018, 1020, 1117, 1141, 12L14
Insert # I.C. T R Grades
High Carbon & Alloy Steel 300 - 500 .002 - .003 .002 - .004
SPEB-2522P .312 .125 .031 B1M D66 K11 K22 Ex. 1045, 4140, 4340, 52100, 8620
SPEB-332P .375 .187 .031 B1M D66 K11 K22 Lower Carbon Tool Steel 300 - 500 .002 - .003 .002 - .004
Ex. P-20, H-13, S-7
Tool Steel
I.C. T Ex. A-2, A-6, D-2, M-2 300 - 500 .001 - .003 .001 - .004
Flat Top Stainless Steel 300 - 500 .001 - .003 .001 - .003
Inserts Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 400 - 800 .002 - .005 .002 - .006
R Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy
Insert Info. Ex. Inconel, Hastelloy, TI-6AL-4V 100 - 200 .001 - .002 .001 - .002
Insert # I.C. T R Grade Non-Ferrous Metal 800 - 1200 .003 - .006 .003 - .008
Ex. Aluminum, Bronze, Brass
SPEB-222F .250 .125 .031 X11
SPEB-322F .375 .125 .031 X11

56 WWW.KTOOLINC.COM
