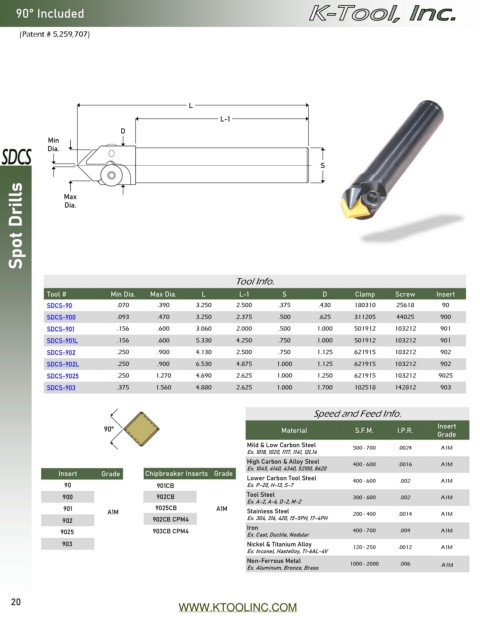

Page 20 - Catalog 15

90° Included

(Patent # 5,259,707)

L
L-1
D
Min
Dia.

S

Spot Drills Max

Dia.

Tool Info.
Tool # Min Dia. Max Dia. L L-1 S D Clamp Screw Insert
SDCS-90 .070 .390 3.250 2.500 .375 .430 180310 25618 90
SDCS-900 .093 .470 3.250 2.375 .500 .625 311205 44025 900
SDCS-901 .156 .600 3.060 2.000 .500 1.000 501912 103212 901
SDCS-901L .156 .600 5.330 4.250 .750 1.000 501912 103212 901
SDCS-902 .250 .900 4.130 2.500 .750 1.125 621915 103212 902
SDCS-902L .250 .900 6.530 4.875 1.000 1.125 621915 103212 902
SDCS-9025 .250 1.270 4.690 2.625 1.000 1.250 621915 103212 9025
SDCS-903 .375 1.560 4.880 2.625 1.000 1.700 102518 142812 903

Speed and Feed Info.
90° Material S.F.M. I.P.R. Insert
Grades
Mild & Low Carbon Steel 500 - 700 .0024 A1M
Ex. 1018, 1020, 1117, 1141, 12L14
Insert Grades High Carbon & Alloy Steel
Ex. 1045, 4140, 4340, 52100, 8620 400 - 600 .0016 A1M
Insert A1M B1M CPM4
Lower Carbon Tool Steel 400 - 600 .002 A1M
90 + + + + - - Ex. P-20, H-13, S-7
900 + + + + + + Tool Steel 300 - 600 .002 A1M
Ex. A-2, A-6, D-2, M-2
901 + + + + - - Stainless Steel 200 - 400 .0014 A1M
901CB + + + + - - Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron
902 + + + + - - Ex. Cast, Ductile, Nodular 400 - 700 .004 A1M
902CB + + + + + + Nickel & Titanium Alloy 120 - 250 .0012 A1M
Ex. Inconel, Hastelloy, TI-6AL-4V
9025 + + + + - -
Non-Ferrous Metal A1M
9025CB + + - - - - Ex. Aluminum, Bronze, Brass 1000 - 2000 .006 B1M
903 + + + + - -
903CB - - - - + +
20
WWW.KTOOLINC.COM
